Compressor Pulley: Locations

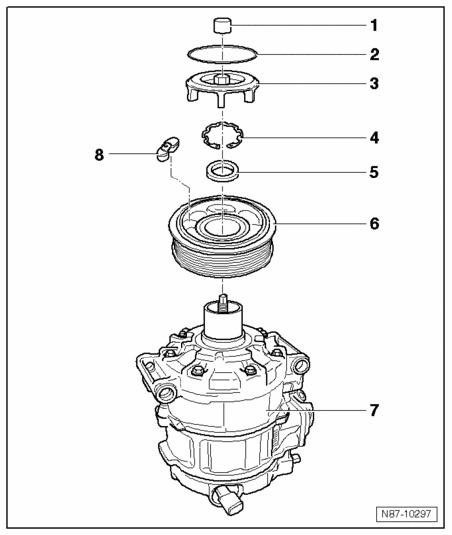

Ribbed Belt Pulley - "Denso" A/C Compressor, Assembly Overview

NOTE:
- This type of ribbed belt pulley is installed on "7SEU17C" A/C compressor.
- Different versions of the ribbed belt pulley may be installed, depending on A/C compressor construction type and engine version Parts Catalog
- Ribbed belt pulley, removing and installing







1. Cover cap
2. Circlip
- Remove carefully using a small screwdriver or needle-nose pliers (pay special attention to ribbed belt pulley when doing this)
3. Guide cage
4. Circlip
- always replace
- install on correct side (flat side toward A/C compressor)
5. Spacer
6. Ribbed belt pulley
- the ribbed belt pulley is made of plastics and is sensitive to impact, be especially careful when handling it
- different versions Parts Catalog
7. Air conditioner compressor
- depending on engine and market version, different versions may be installed Parts Catalog
- Clean A/C compressor flange before sliding on ribbed belt pulley.
8. Rubber element
- Qty. 6
- decouples ribbed belt pulley from A/C compressor input shaft, dampers vibration and noise
- for installation, lightly coat damper, e.g. with tire mounting paste or a soap solution (as a lubricant)
