Installation Unit, Removing and Installing

Installation unit, removing and installing

CAUTION:
- Only remove and install drive motor for sunroof glass panel when roof is closed (zero position).
- Requirements for removing and installing the drive motor are: Engine and ignition off, remove key and open door.

Removing







- Remove molded headliner.

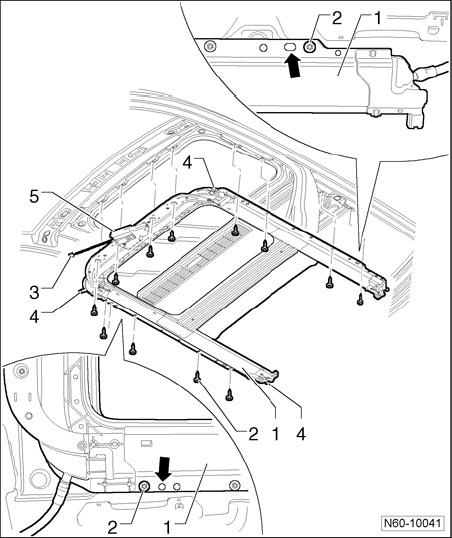

- Disconnect water drain hoses - 4 - from installation unit - 1 -.
- Disconnect harness connector - 3 - from drive motor of glass panel for sunroof - 5 -
- Remove bolts - 2 - and remove installation unit - 1 - from vehicle with a second technician.

Installing







- With a second technician, insert installation unit - 1 - into roof cutout.







- During installation, align installation unit - 1 - via two cylindrical pins (reversed drill bit) 12 mm at right front - arrow - and 10 mm left rear - arrow - in roof.

Installation unit must not make contact with roof frame.

- Insert bolts - 2 -.
- Check wires and harness connectors for electrical consumers at roof for correct routing and reproduce if necessary.
- Firmly bolt (8 Nm) installation unit - 1 - of drive motor for sunroof - 5 - beginning at left and right toward rear.
- Install water drain hoses - 4 -.
- Connect harness connector - 3 - for drive motor of glass panel for sunroof - 5 -.
- Install molded headliner.
