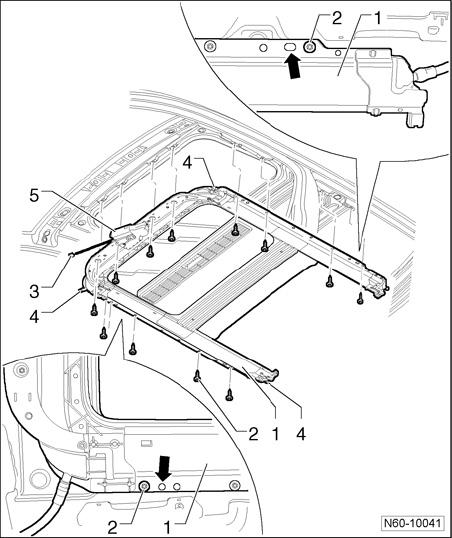

Installation Unit, Assembly Overview

Installation Unit, Assembly Overview







1 - Assembly unit
2 - Screw
- Qty. 12
- 8 Nm

3 - Connector
4 - Connections for water drain hoses
5 - Drive motor for sunroof
