Adjustment Overview

Adjustment Overview

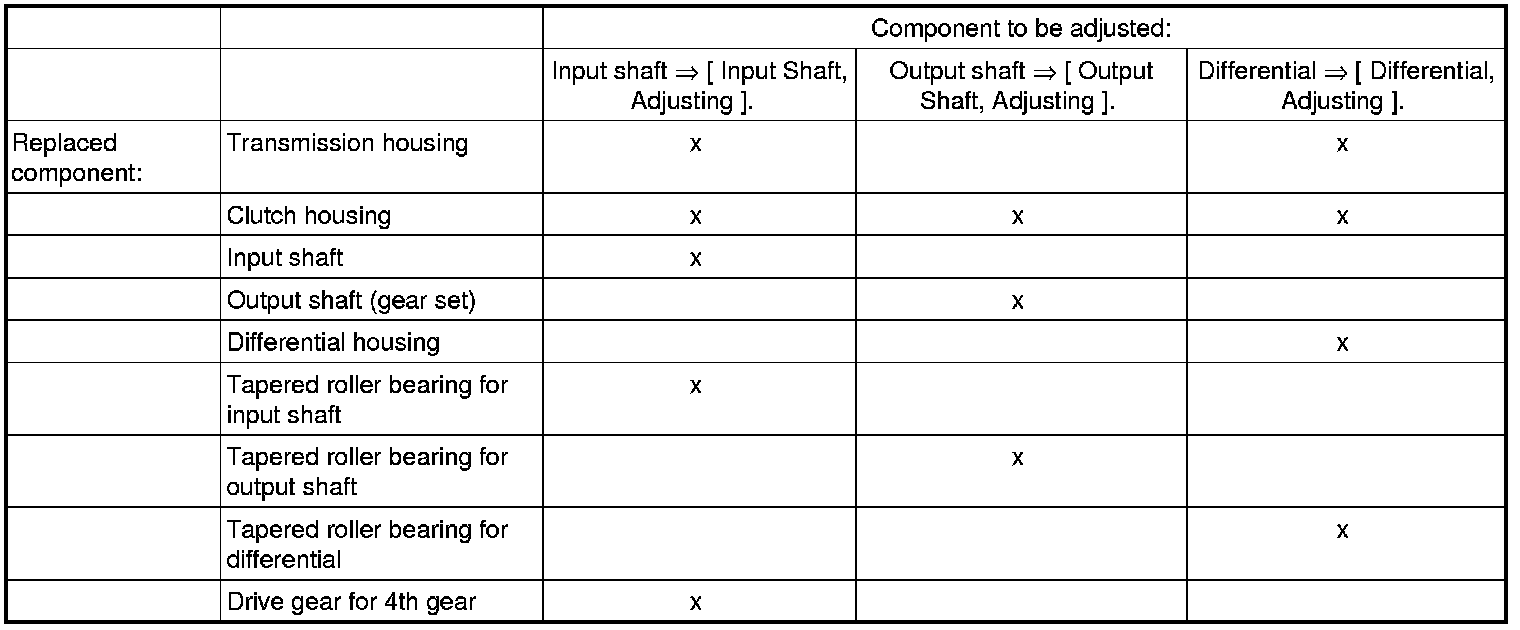

• If repairs have been performed on the transmission, it is only necessary to adjust the input shaft, output shaft or differential if components have been replaced which have a direct effect on the adjustment of the transmission. Refer to the following table to avoid unnecessary adjustments:
