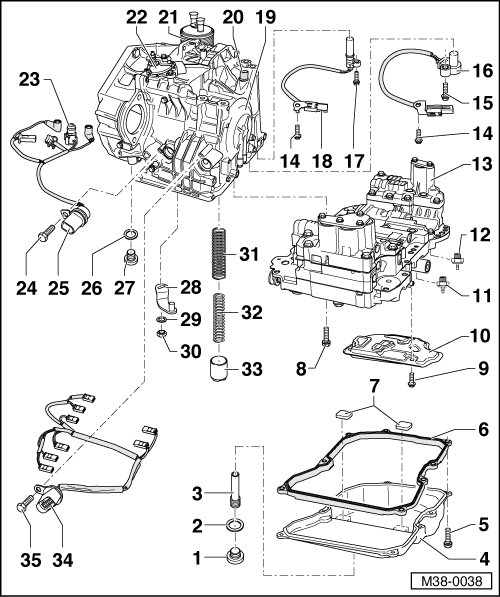

Valve Body Assembly Overview

Valve Body Assembly Overview





1 ATF inspection plug, 27 Nm

• Always replace seal => [ (Item 2) Oil seal ]

• ATF level, checking and topping off => [ ATF Level ] ATF Level

2 Oil seal

• Always replace

3 Overflow tube, 2 Nm

• Remove to drain ATF

• ATF level, checking and topping off => [ ATF Level ] ATF Level

4 Oil pan

• Removing and installing => [ Oil Pan ] Service and Repair

5 Bolt, 7 Nm

• Tighten bolts for oil pan in several stages in diagonal sequence

6 Gasket

• Always replace

7 Magnet

• 2 pieces in webs of oil pan

• Clean before installing

8 Bolt, 8 Nm plus an additional 1/4 turn (90°)

• Qty. 12 with various lengths for securing valve body to transmission

• Always replace bolts

• Note allocation => [ Valve Body ] Valve Body, removing and installing valve body

9 Bolt, 11 Nm

• 3x

• For securing oil strainer to valve body

10 Oil strainer

• Removing and installing => [ Oil Strainer ] Service and Repair

11 Automatic Transmission Hydraulic Pressure Sensor 1 (G193)

• No longer installed as of 07.04

12 Automatic Transmission Hydraulic Pressure Sensor 2 (G194)

• No longer installed as of 07.04

13 Valve body

• Removing and installing => [ Valve Body ] Valve Body

• Identification of solenoid valves => [ Solenoid Valve Identification ] Solenoid Valve Identification

• Allocation according to transmission code letters

14 Bolt, 7 Nm

15 Bolt, 6 Nm

16 Transmission Input Speed (RPM) Sensor (G182)

• Removing and installing => [ Transmission Input Speed Sensor ] Transmission Input Speed Sensor

17 Bolt, 7 Nm

18 Transmission Output Speed (RPM) Sensor (G195 )

• Removing and installing => [ Transmission Output Speed Sensor ] Transmission Output Speed Sensor

19 Transmission housing

20 Breather cap

21 ATF cooler

• Removing and installing => [ ATF Cooler ] ATF Cooler

22 Multi-Function Transmission Range (TR) Switch ( F125)

• Removing and installing => [ Multi-Function Transmission Range Switch ] Service and Repair

• Adjusting => [ Multi-Function Transmission Range Switch, Adjusting ] Adjustments

23 Transmission Fluid Temperature Sensor (G93)

• Integrated in wiring harness => [ (Item 25) Wiring harness with 8-pin connector ]

24 Bolt, 6 Nm

25 Wiring harness with 8-pin connector

• With O-ring on connector, always replace O-ring

• With Transmission Fluid Temperature Sensor ( G93 )

• For Transmission Input Speed (RPM) Sensor ( G182 )

• For Transmission Output Speed (RPM) Sensor ( G195 )

• For Automatic Transmission Hydraulic Pressure Sensor 1 (G193) and Automatic Transmission Hydraulic Pressure Sensor 2 (G194) (only up to 06.04)

• Component locations of sensors => [ Sensor Identification ] Sensor Identification

• Removing and installing => [ Wiring Harness with 8-Pin Connector ] Wiring Harness With 8-Pin Connector

26 Oil seal

• Always replace

27 ATF drain plug, 40 Nm

28 Selector lever

• For gear selector rod

• Removing and installing => [ Valve Body ] Valve Body, Valve body, removing and installing

29 Washer

30 Nut, 10 Nm

• Note installation position of nut => [ Valve Body ] Valve Body, installing valve body

31 Large spring

• Not installed in all transmissions

32 Small spring

33 Damping plunger

34 Wiring harness with 14-pin connector

• With O-ring on connector, always replace O-ring

• For solenoid valves

• Component locations of solenoid valves and wiring harness routing => [ Solenoid Valve Identification ] Solenoid Valve Identification

• Removing and installing => [ Wiring Harness with 14-Pin Connector ] Wiring Harness With 14-Pin Connector

35 Bolt, 6 Nm
