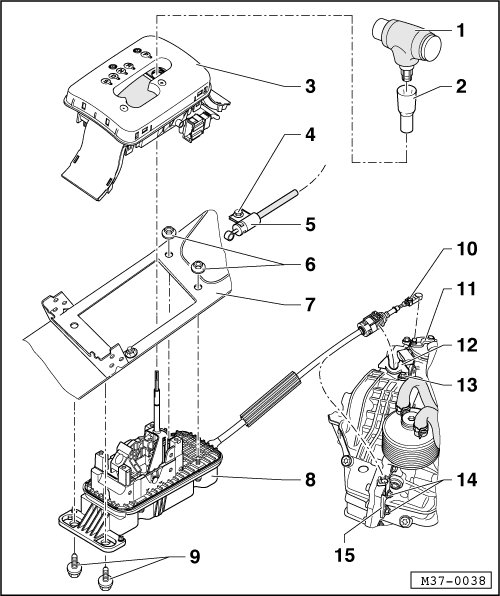

Selector Mechanism Assembly Overview

Selector Mechanism Assembly Overview

Removing => [ Selector Mechanism ] Selector Mechanism.





1 Selector lever handle

• Removing and installing => [ Selector Lever Handle ] Selector Lever Handle

2 Sleeve

• Engages in selector lever handle

• Locks the removal of selector lever handle

3 Cover

• With circuit board and frame

• Assembly overview => [ Selector Mechanism Frame Assembly Overview ] Selector Mechanism Frame Assembly Overview and => [ Selector Mechanism Cover Assembly Overview ] Selector Mechanism Cover Assembly Overview

4 Bolt, 10 Nm

• For locking cable adjustment

5 Locking cable

• Removing and installing => [ Locking Cable ] Service and Repair

6 Nut, 23 Nm

• For selector mechanism to body

7 Floor plate/body

8 Selector mechanism

9 Bolt, 23 Nm

10 Bolt, 13 Nm

• For selector lever cable adjustment

11 Lever

• For selector shaft

12 Pivot

• For selector lever cable to transmission

13 Bolt, 23 Nm

• For mounting bracket

• 2x

14 Nut, 8 ± 0.8 Nm

• For bracket => [ (Item 15) Bracket ] to transmission

15 Bracket

• With clip for selector lever cable
