Selector Mechanism Frame

Selector Mechanism Frame

Disassembling

- Remove cover => [ Selector Mechanism Cover and Circuit Board ] Selector Mechanism Cover and Circuit Board.

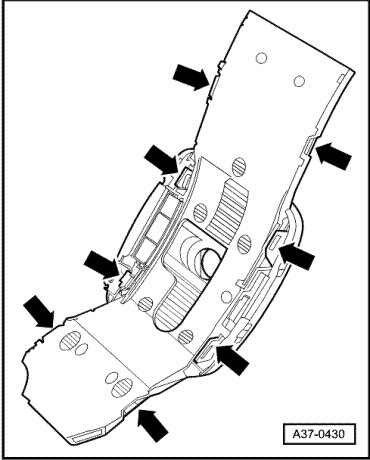

- Carefully pry off retaining tabs - arrows -.





• Replace the frame if the retaining tabs are damaged.

- Remove upper section of frame - 1 -.





- Remove cover strip - 2 - from lower section of frame - 3 -.

Assembling

- Check whether magnets - arrows - are secured to cover strip - 2 -.

• If magnets are not on cover strips, replace cover strips.

- Insert cover strip - 2 - into lower section of frame - 3 -.





- Install upper section of frame - 1 - onto lower section of frame.

- Carefully engage upper and lower sections of frame to each other - arrows -.

• Replace the frame if the retaining tabs are damaged.

- Install cover => [ Selector Mechanism Cover and Circuit Board ] Selector Mechanism Cover and Circuit Board.
