Torque Converter Oil Seal

Torque Converter Oil Seal

Special tools, testers and auxiliary items required

• Thrust piece (T10175)

• Extractor Lever (VW 681)

Removing

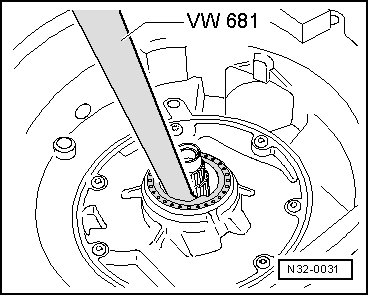

- Pry out seal using Extractor Lever (VW 681).





Installing

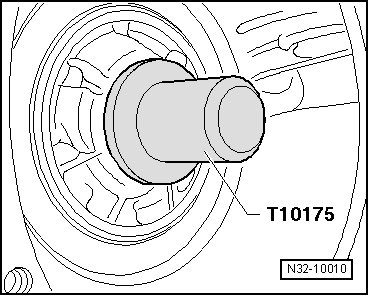

- Drive in seal flush using thrust piece (T10175 ).
