Selector Shaft Seal

Selector Shaft Seal

Special tools, testers and auxiliary items required

• Thrust piece (T10174)

Removing

- Remove Multi-Function Transmission Range (TR) Switch (F125) => [ Multi-Function Transmission Range Switch ] Service and Repair.

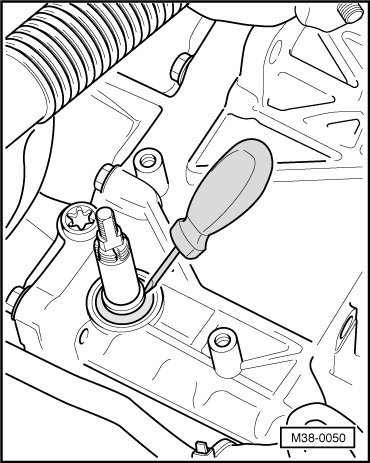

- Carefully pry out selector shaft seal using a screwdriver. Do not damage selector shaft when doing this.





Installing

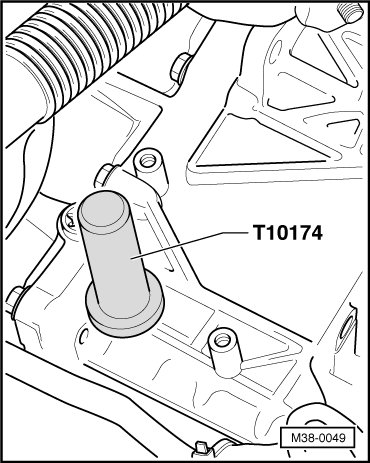

- Drive in new sealing ring to stop, without canting.





- Install Multi-Function Transmission Range (TR) Switch (F125) => [ Multi-Function Transmission Range Switch ] Service and Repair.

- Adjust Multi-Function Transmission Range (TR) Switch (F125) => [ Multi-Function Transmission Range Switch, Adjusting ] Adjustments.
