Home >> Volkswagen >> 2007 >> New Beetle Convertible (1Y7) L5-2.5L (BPS) >> Repair and Diagnosis >> Technical Service Bulletins >> Superceded Bulletins >> Audio System - Poor Radio Redeption >> Service >> Section 4: Antenna Cables

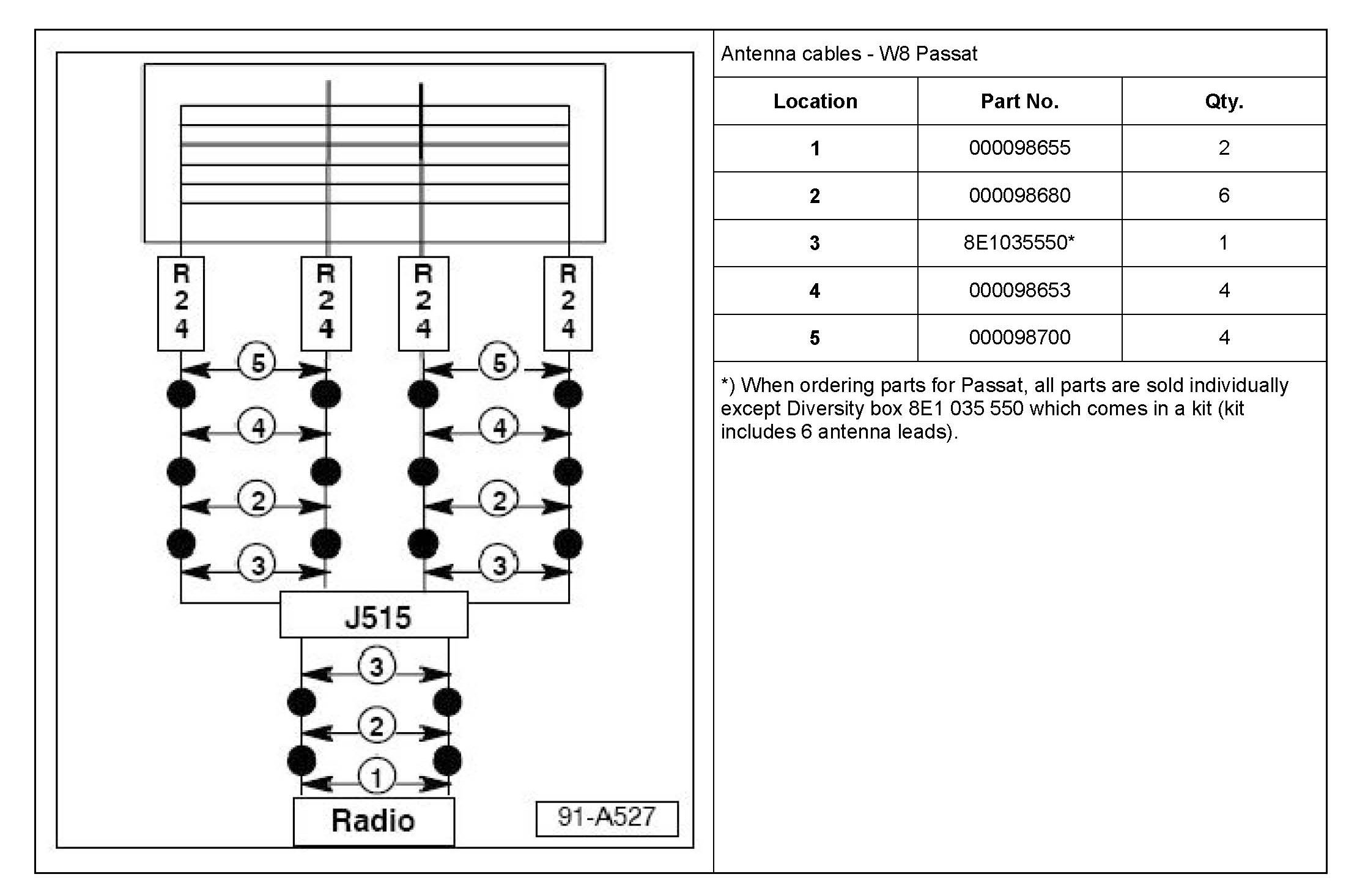

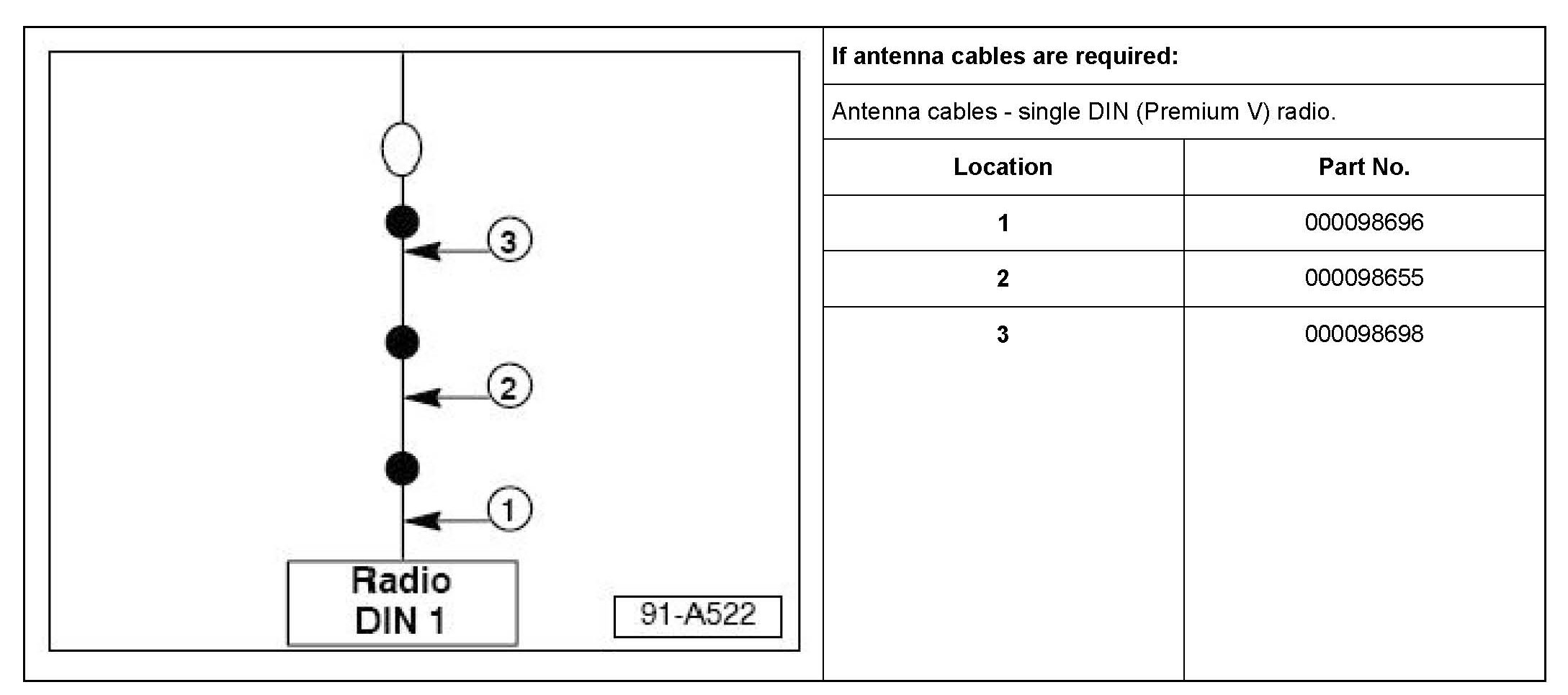

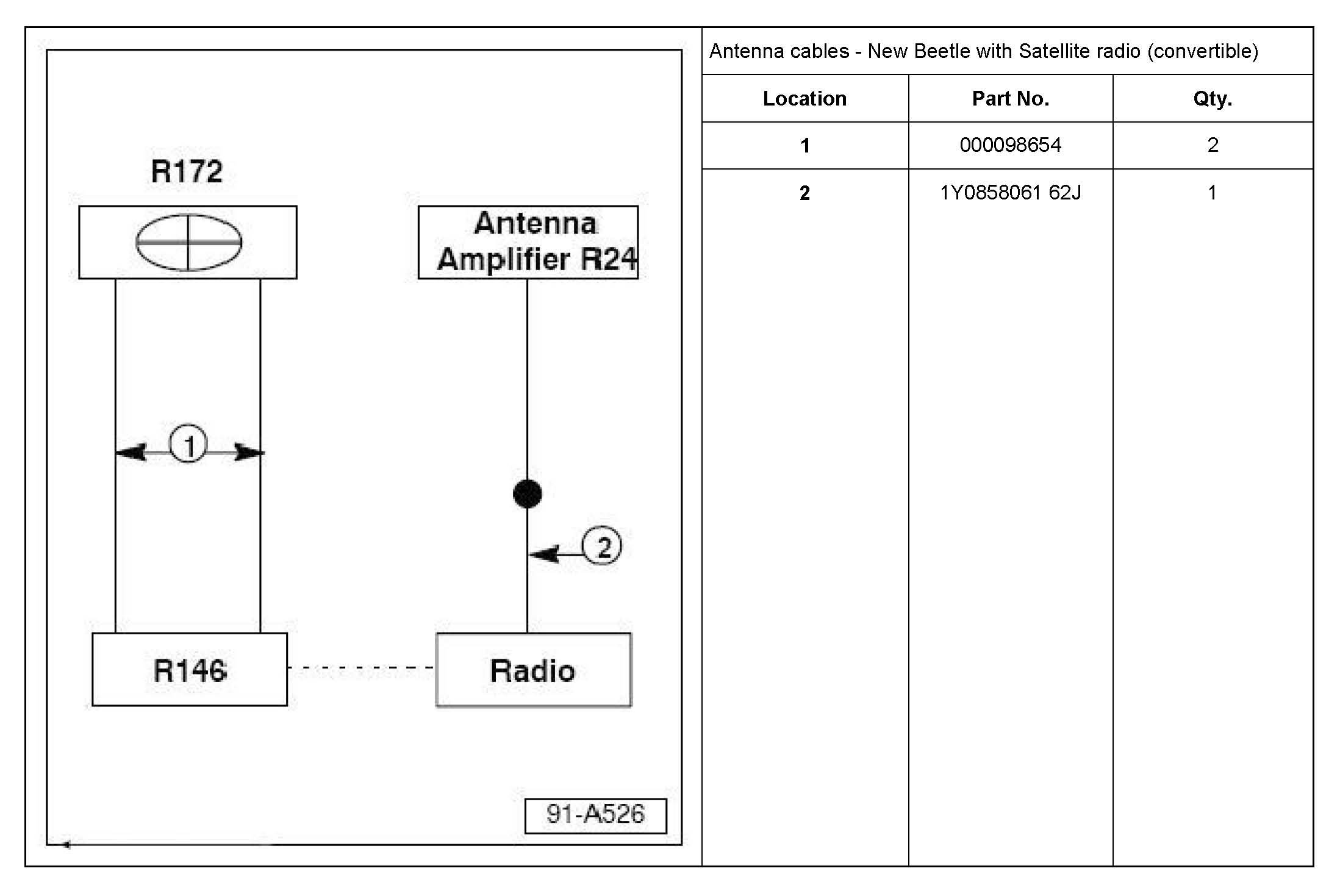

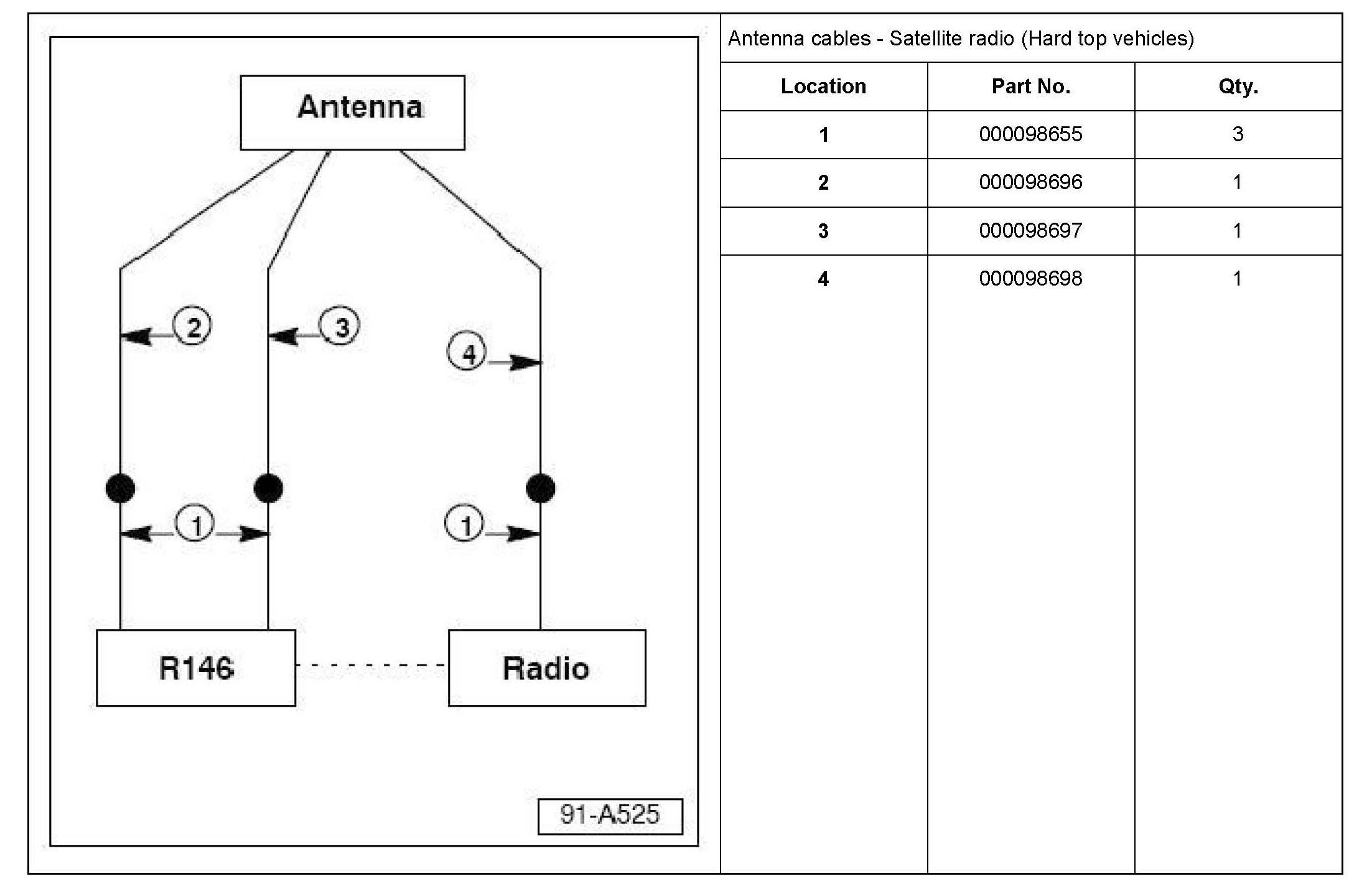

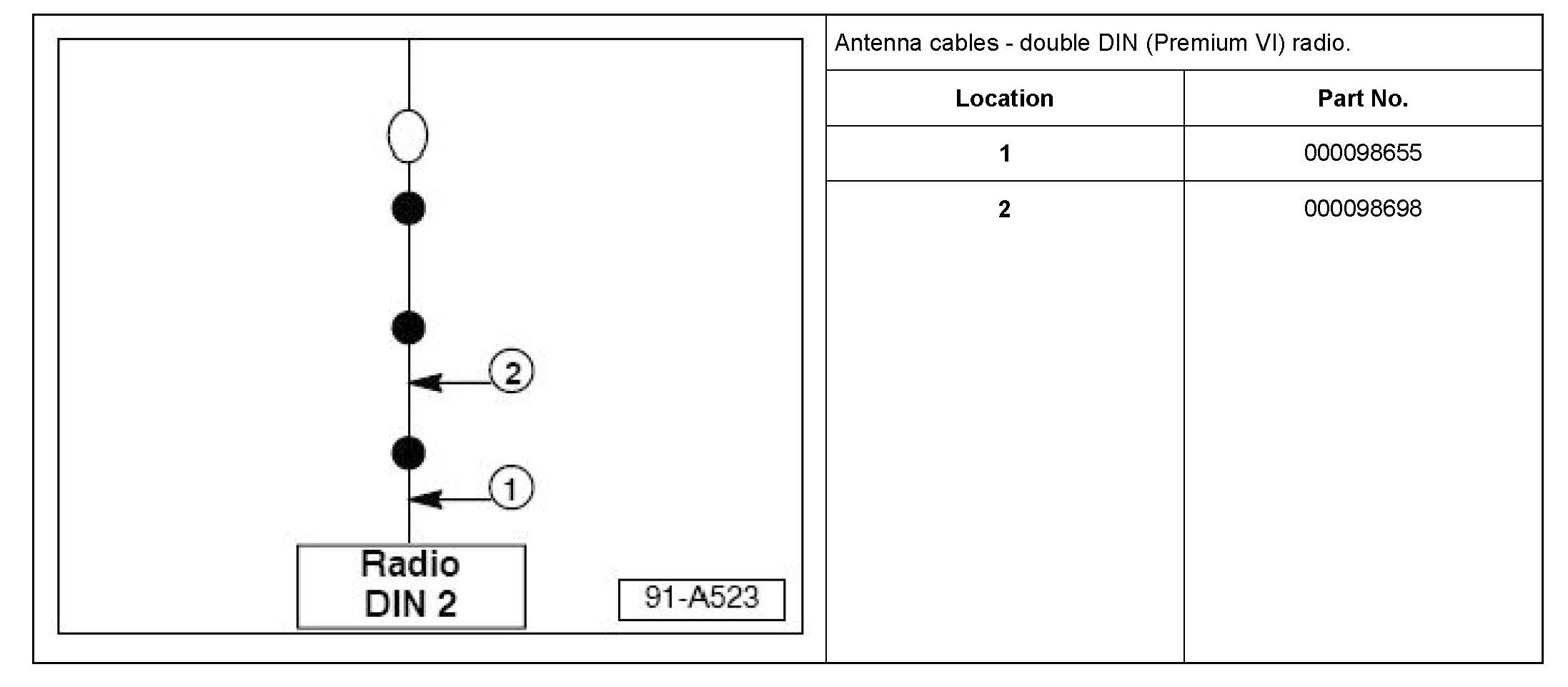

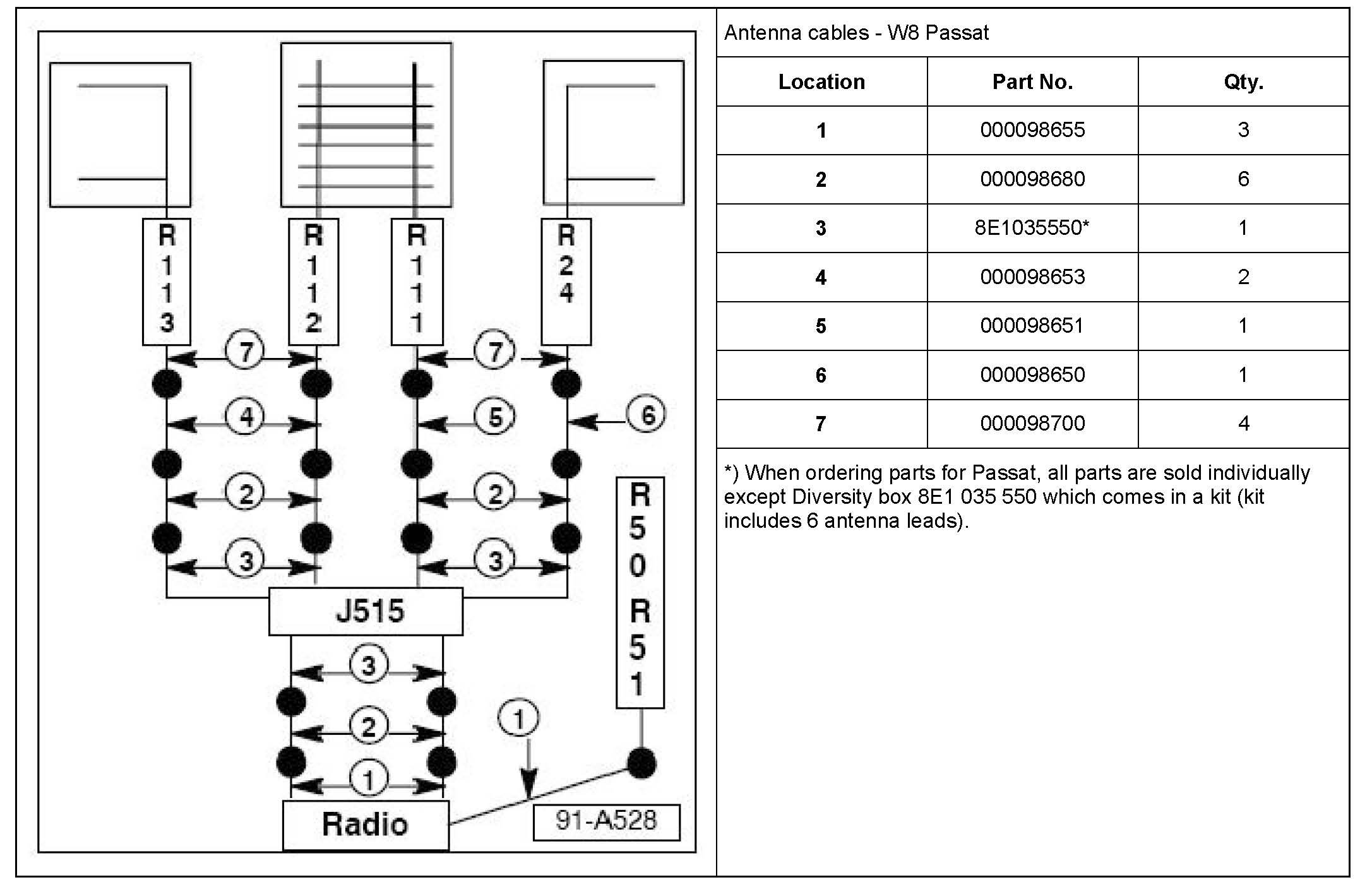

Section 4: Antenna Cables























Section 4 - Antenna cables
