Home >> Volkswagen >> 2007 >> New Beetle Convertible (1Y7) L5-2.5L (BPS) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Measured Value (Data) Block, Reading (Function 08) >> Evaluating Measured Value Blocks >> Display Group 007

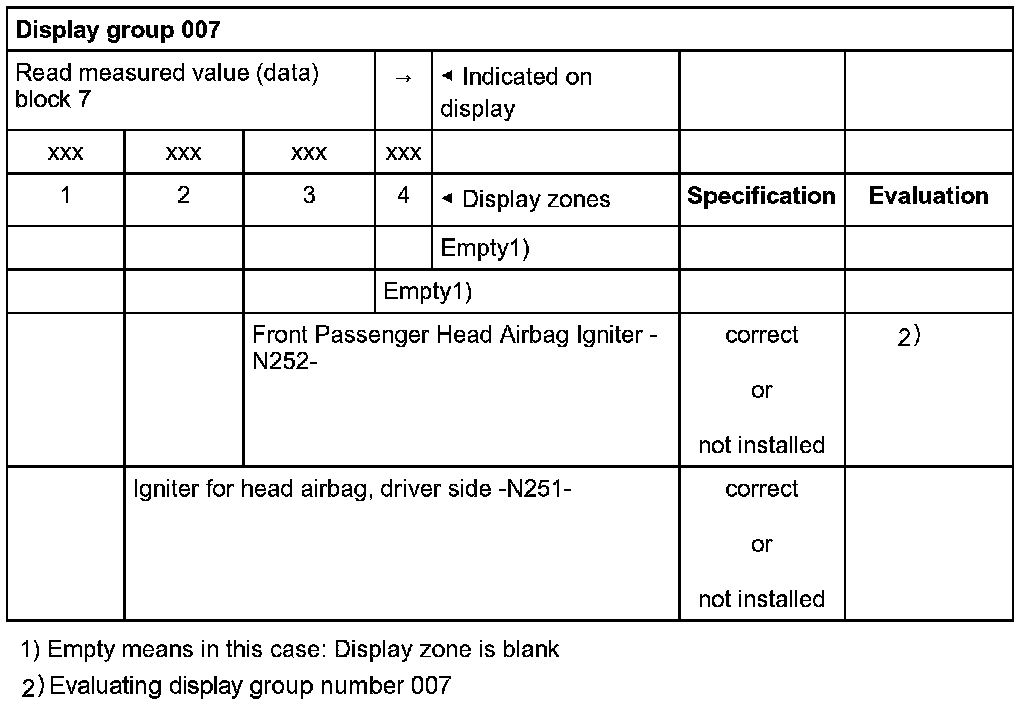

Display Group 007



Display Group 007

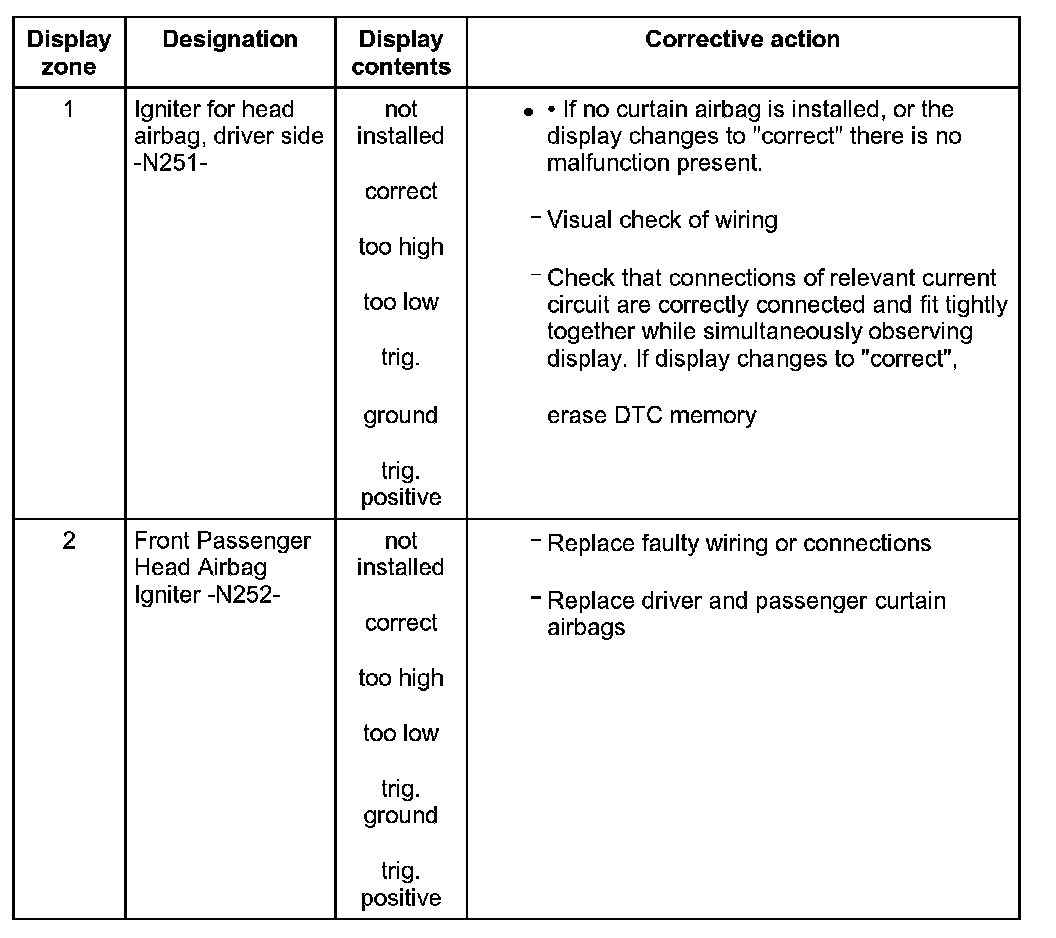

Evaluating display group number 007
