09G Transmission






Transmission Control Module

Removing

- Switch ignition off.

- Remove defroster duct.

• Harness connector of control module may only be disconnected or connected 30 seconds after ignition is switched off.

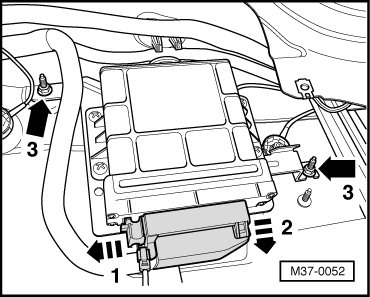

- Release harness connector - arrow 1 - and remove it from Transmission Control Module (TCM) - arrow 2 -.





• Separating the connector automatically resets the adaptation values of the transmission. The control module must relearn the values once the transmission is operational again. The quality of the gear changes may deteriorate during the "learning" process.

- Remove nuts - arrow 3 -.

- Remove control module.

Installing

Installation is in reverse order of removal.

- When installing, insert multi-pin harness connector on to pins of Transmission Control Module (TCM) (J217) - arrow 1 - and then engage multi-pin harness connector - arrow 2 -.





- Tighten nuts - arrow 3 - to 10 Nm.

- Connect diagnostic operation system ( VAS 5051 ) and advance program until "function/component selection " is displayed => [ VAS 5051, Connecting and Selecting Functions ] 09G Transmission.

- Then press "Powertrain (Repair Group 01; 10 to 26; 28 to 39) ".

- Then press "6 Spd. Automatic Transmission 09G".

- Press "01 - On Board Diagnostic".

- Press "Functions".

- Press "Basic setting".
