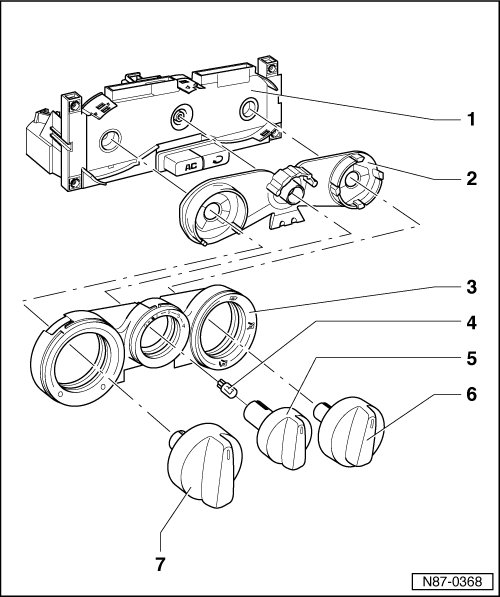

Heating and A/C Controls Component Overview

Heating and A/C Controls Component Overview





1 Heating and A/C controls

• With A/C Evaporator Temperature Switch (E35)

• With Fresh Air Blower Switch (E9)

• With Fresh Air Blower/Recirculated Air Switch ( E184)

• Removing and installing => [ Heating and A/C Controls ] Heating and A/C Controls

2 Illumination filter

3 Trim panel

4 Fresh Air Control Illumination (L16)

• 12V, 1.2W

5 Rotary control

• For blower speed

• To remove: Use pliers with suitable plastic or rubber protection on jaws

6 Rotary control

• For air distribution

• To remove: Use pliers with suitable plastic or rubber protection on jaws

7 Rotary control

• For interior temperature

• To remove: Use pliers with suitable plastic or rubber protection on jaws
