Exhaust Manifold: Locations

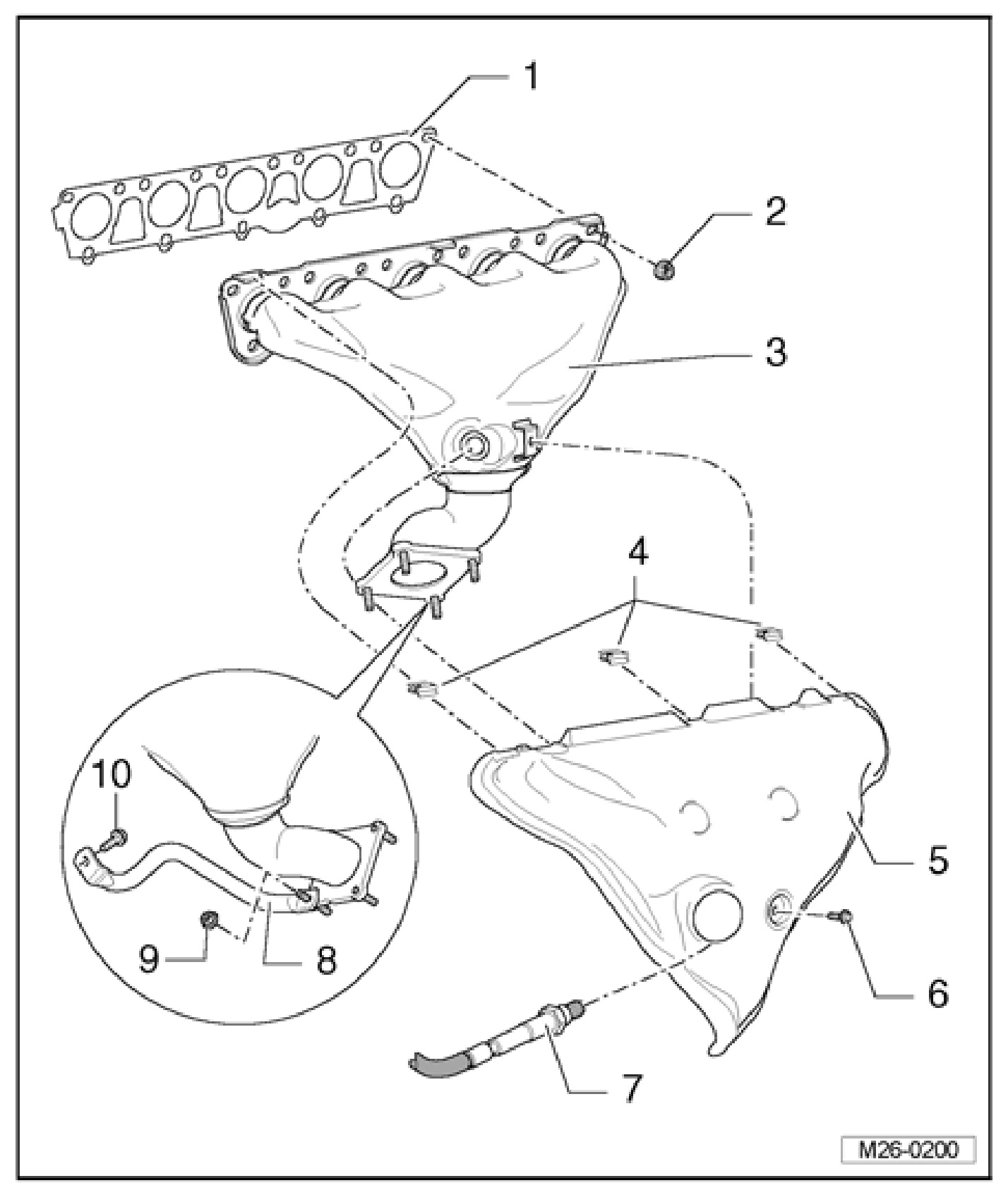

Exhaust Manifold With Attachments, Assembly Overview







1 - Gasket
- Replace
2 - 25 Nm
- Replace
3 - Exhaust manifold
- Coat stud bolts on cylinder head with hot bolt paste
- Remove downward
4 - Clip
5 - Warm air collector plate
6 - 10 Nm
7 - Heated Oxygen Sensor (HO2S) G39, 55 Nm
- Only use hot bolt paste to grease thread; do not let paste get onto slits of oxygen sensor body
- Color of harness connector: Black
8 - Brace
9 - 25 Nm
- Replace
10 - 25 Nm
