Front Engine Plate: Locations

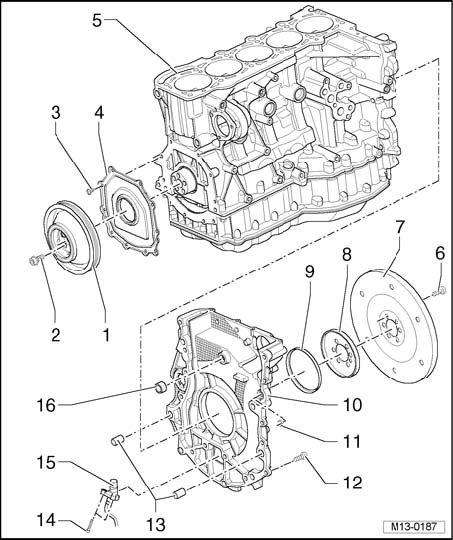

Sealing flange, assembly overview





1 - Belt pulley/vibration damper

2 - Bolts
^ 5 pieces
^ Replace
^ Tightening torque

Strength category 12.9:
- 70 Nm

Strength category 10.9:
- 50 Nm plus an additional 1/4 turn (90°)

3 - 10 Nm

4 - Sealing flange on belt pulley side
^ With integrated sealing ring
^ Removing and installing Sealing flange for crankshaft (ribbed belt side), replacing

5 - Cylinder block

6 - 60 Nm plus an additional 1/4 turn (90°)
^ Replace

7 - Drive plate/flywheel
^ To remove, secure crankshaft using locking pin T40069.

8 - Sensor wheel
^ For Engine Speed (RPM) Sensor G28
^ With position holder

9 - Sealing ring (transmission side)

10 - Control housing cover

11 - O-ring
^ Replace

12 - 25 Nm

13 - Fitting sleeves

14 - 5 Nm

15 - Engine speed (RPM) sensor G28

16 - Seal
^ Replace
