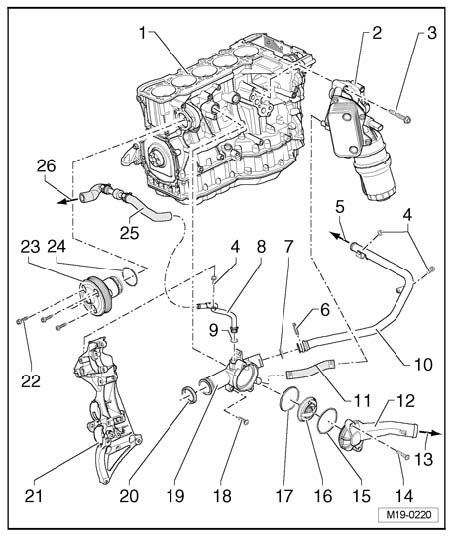

Cooling System Components - Engine Side, Assembly Overview



Cooling system components (on engine), assembly overview

Part 1





1 - Cylinder block

2 - Oil cooler

3 - 25 Nm

4 - 10 Nm

5 - To heater core of heater, bottom

6 - Retaining clip

7 - O-ring
^ Replace

8 - Front coolant line

9 - O-ring
^ Replace

10 - Coolant line

11 - Connecting hose

12 - Connecting piece

13 - To radiator, bottom

14 - 5 Nm

15 - O-ring
^ Replace

16 - Coolant thermostat
^ Note installation position:
- Valve must be at top
^ Checking: Heat up thermostat in water
- Starts to open: approx. 87° C End of opening: approx. 102° C Open distance: at least 7 mm

17 - Seal
^ Replace

18 - 25 Nm

19 - Coolant thermostat housing

20 - Seal
^ Replace

21 - Bracket for assemblies

22 - 10 Nm

23 - Coolant pump

24 - O-ring
^ Replace

25 - Connecting hose

26 - To expansion tank, bottom

Part 2





1 - Pipe connection
^ Pressed in cylinder head
- If necessary, remove coolant deposits using a copper wire brush or fine sandpaper (minimum 100 grit).

2 - Circlip

3 - Seal

4 - To expansion tank, top

5 - Rear coolant pipe

6 - 10 Nm

7 - To heater core, top

8 - Supply hose

9 - Bypass thermostat
^ Only for vehicles with automatic transmission

10 - To ATF cooler
^ Only for vehicles with automatic transmission

11 - Supply hose

12 - From heater core, bottom

13 - From ATF cooler
^ Only for vehicles with automatic transmission

14 - Return hose

15 - Coolant line

16 - To coolant regulator housing

17 - Coolant distribution housing

18 - Supply hose

19 - To top of radiator

20 - Coolant hoses
^ Only for Throttle Valve Control Module J338 heated by coolant

21 - Throttle valve control module J338
^ Connection only for coolant heated Throttle Valve Control Module J338

22 - Engine Coolant Temperature (ECT) Sensor G62

23 - O-ring
^ Replace

24 - Retaining clip





Bypass thermostat - assembly overview
1 - Spring bracket
2 - Lower part of housing
- Note installation position: Arrow points toward ATF cooler
3 - Operating element
4 - Spring
5 - O-ring
6 - Upper part of housing

Checking bypass thermostat
- Remove operating element - 3 - and heat in a hot water bath.
- Starts to open: approx. 75° C
- Opening end: approx. 85° C
- Opens: approx. 5 mm
