Cooling System Components - Body Side, Assembly Overview

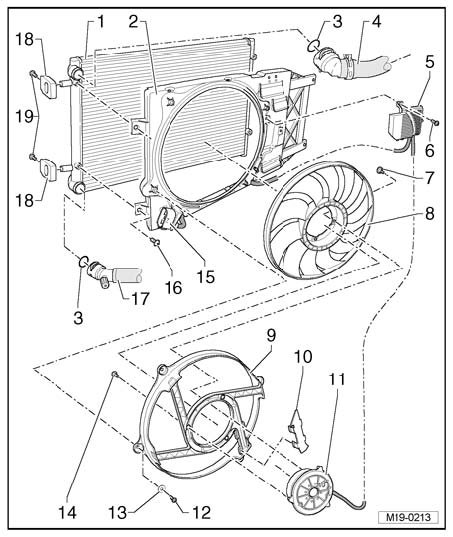

Cooling system components (on body), assembly overview





1 - Radiator
After replacing replace entire amount of coolant

2 - Air shroud

3 - O-ring
Replace if damaged

4 - Upper coolant hose
Secured to radiator with a retaining clip

5 - Coolant Fan Control (FC) Control Module J293
6 - 5 Nm
7 - Bolt
8 - Fan wheel
9 - Fan ring
10 - Cover
11 - Coolant fan motor
12 - 5 Nm
13 - Washer
14 - Bolt
15 - Connector
16 - 5 Nm

17 - Lower coolant hose
Secured to radiator with a retaining clip
Ensure seated tightly
Coolant hose connection diagram = Coolant hose connection diagram

18 - Bracket
For radiator
Note installation position

19 - 5 Nm
