Brake System Vacuum Pump

Brake System Vacuum Pump

Servicing of brake system vacuum pump (V192) is not intended. If there is a malfunction, replace brake system vacuum pump (V192).

Installation position of brake system vacuum pump ( V192) is located lower left on subframe.

Removing

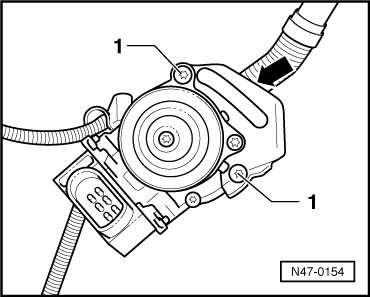

- Remove bolts - 1 - on bracket for hydraulic unit.





- Disconnect vacuum hose - arrow - from brake system vacuum pump (V192).

- Remove brake system vacuum pump (V192).

Bracket - arrow - for brake system vacuum pump (V192)





- Remove lock nut - 2 - from bolt - 1 -.

- Remove bolt - 4 - and bracket.

- Further disassembly of bracket - arrow -, remove bolts - 3 -.

Installing

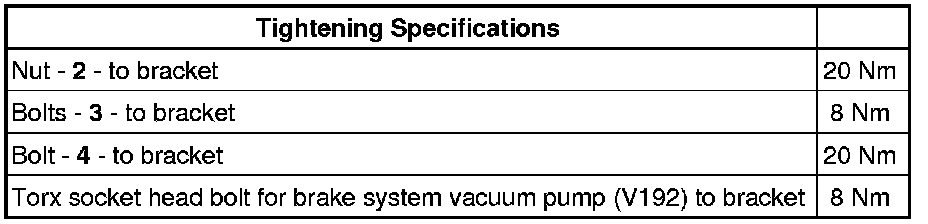

Installation is performed in reverse order of removal.
