ABS - Electrical and Electronic Component Locations - EDL/ASR

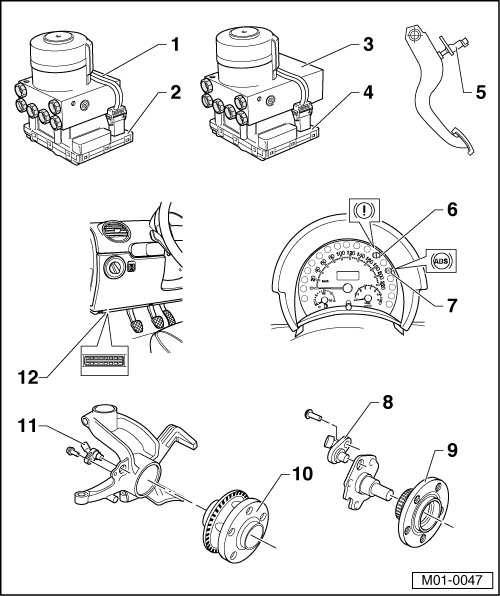

1 - ABS Hydraulic Unit -N55-
• Located on the left side of engine compartment
• Component location same for all systems
The hydraulic unit consists of the following components:
• ABS Hydraulic Pump -V64-

• Valve block (contains the inlet/outlet valves).


2 - ABS Control Module -J104-
• Located at the hydraulic unit on the left side of engine compartment
• Component location same for all systems

3 - ABS Hydraulic Unit -N55-
• Hydraulic unit for ABS/EDL and ABS/EDL/ASR
• Located on the left side of engine compartment
• Component location same for all systems
The hydraulic unit consists of the following components:
• ABS Hydraulic Pump -V64-

• Valve block (contains the inlet/outlet valves).


4 - ABS Control Module -J104-
• Hydraulic unit for ABS/EDL and ABS/EDL/ASR
• Located at the hydraulic unit on the left side of engine compartment
• Component location same for all systems




ABS - Electrical and Electronic Component Locations -
EDL/ASR Continued





5 - Brake Light Switch -F- /Brake pedal switch -F47-
• Located at the brake pedal
• Component location same for all systems
• ABS - Electrical and Electronic Component Locations - EDL/ASR/ESP => [ ABS - Electrical and Electronic Component Locations - EDL/ASR/ESP ] ABS - Electrical and Electronic Component Locations - EDL/ASR/ESP
• ABS - Electrical and Electronic Component Locations - through MY 2005 => [ ABS - Electrical and Electronic Component Locations - through MY 2005 ]
• ABS Electrical and Electronic Component Locations from MY 2006 => [ ABS - Electrical and Electronic Component Locations - from MY 2006 ] ABS - Electrical and Electronic Component Locations - from MY 2006

6 - Brake System Warning Lamp -K118-
• Located in the instrument cluster

7 - ABS Warning Lamp -K47-
• Located in the instrument cluster

8 - Right Rear ABS Wheel Speed Sensor -G44- and Left Rear ABS Wheel Speed Sensor -G46- => [ Rear Wheel Speed Sensors ] See Image Below.
• Component location same for all systems

9 - Wheel hub with rotor for rear speed sensor

10 - Wheel hub with rotor for front speed sensor

11 - Right Front ABS Wheel Speed Sensor -G45- and Left Front ABS Wheel Speed Sensor -G47- => [ Front Wheel Speed Sensors ] See Image Below.
• Component location same for all systems

12 - Data Link Connector (DLC)
• Located left under the driver side storage compartment




Rear Wheel Speed Sensors






1 - Right Rear ABS Wheel Speed Sensor -G44- and Left Rear ABS Wheel Speed Sensor -G46-



Front Wheel Speed Sensors






1 - Right Front ABS Wheel Speed Sensor -G45- and Left Front ABS Wheel Speed Sensor -G47-
