Large and Small Trim

Pillar and Side Trims, Convertible

Large and Small Trim

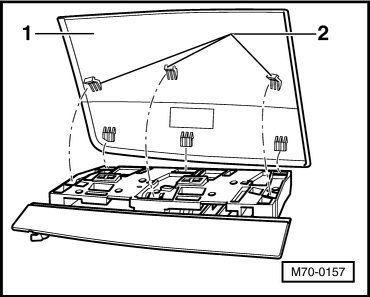

Removing large trim

- Remove the main frame of the lid module. Refer to => [ Small Trim Lid Module Assembly Overview ] Pillar and Side Trims, Convertible Overview Item 12.

- Press retaining tabs - 2 - back from the rear.





- Pull out trim - 1 - in an upward direction.

Installation

To install, perform the steps used in removal in reverse order.

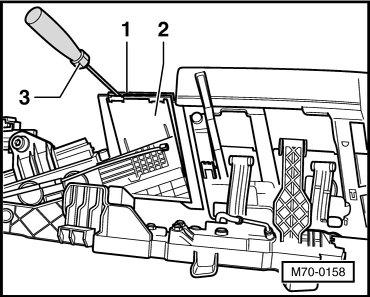

Removing small trim

- Remove the main frame of the lid module. Refer to => [ Small Trim Lid Module Assembly Overview ] Pillar and Side Trims, Convertible Overview Item 12.

- Carefully pry off trim - 1 - from bracket - 2 - using screwdriver - 3 -.





Installation

To install, perform the steps used in removal in reverse order.
