Convertible Top Moulding / Trim: Adjustments
Pillar and Side Trims, Convertible
Large and Small Trim, Adjusting

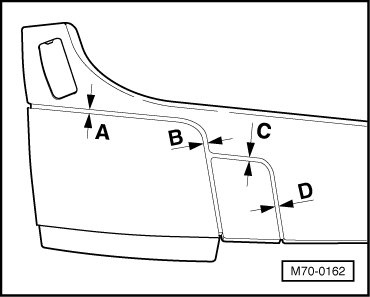

Large and small trim borders may have different gap dimensions with respect to side trim borders.
- Gap dimensions - A -, - B -, - C -, - D - should be between 3.5 and 4.5 mm to avoid jamming or damaging when opening or closing trims.
Adjusting gap dimension - A -.
Adjusting gap dimension - B -.
Adjusting gap dimension - C - and - D -.

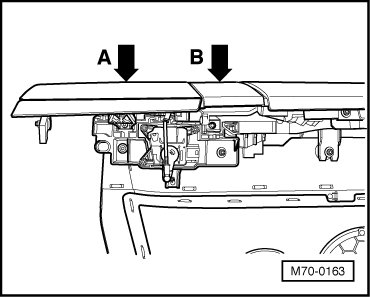

Large and small trim may show different height with respect to side trim.
- Heights - A - and - B - should be same heights as side trim to avoid jamming or damage when opening or closing trim.
Adjusting trim height - A -.
Adjusting trim height - B -.

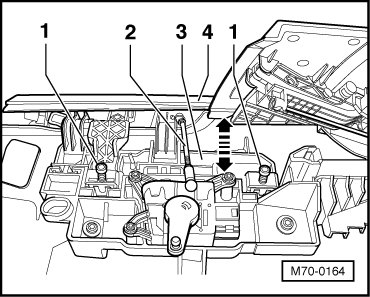

Adjusting gap dimension A
- Remove side trim. Refer to => [ Side Trim ] Pillar and Side Trims, Convertible.
- Disconnect pressure rod - 2 -.
- Open trim - 4 -.
- Loosen bolts - 1 -.
- Align trim module - 3 - in the - direction of the arrow -.
- Tighten bolts to - 1 - to 3 Nm.
- Close trim - 4 -.
- Connect pressure rod - 2 -.
- Check gap dimension - A - for a distance of 3.5-4.5 mm and repeat the adjustment if necessary.
- Install side trim. Refer to => [ Side Trim ] Pillar and Side Trims, Convertible.

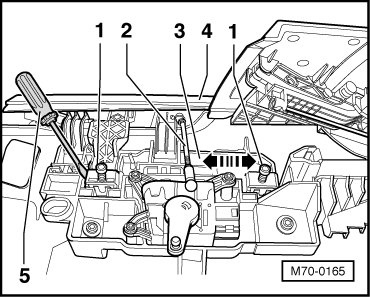

Adjusting gap dimension B
- Remove side trim. Refer to => [ Side Trim ] Pillar and Side Trims, Convertible.
- Disconnect pressure rod - 2 -.
- Open trim - 4 -.
- Loosen bolts - 1 -.
- Align trim module - 3 - in the - direction of the arrow - using screwdriver - 5 -.
- Tighten bolts to - 1 - to 3 Nm.
- Close trim - 4 -.
- Connect pressure rod - 2 -.
- Check gap dimension - B - for a distance of 3.5-4.5 mm and repeat the adjustment if necessary.
- Install side trim. Refer to => [ Side Trim ] Pillar and Side Trims, Convertible.

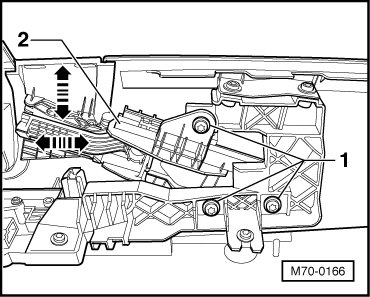

Adjusting gap dimension C and D
- Remove side trim. Refer to => [ Side Trim ] Pillar and Side Trims, Convertible.
- Remove bolts - 1 -.
- Align trim module - 2 - in the - direction of the arrow -.
- Tighten bolts to - 1 - to 3 Nm.
- Check gap dimension - C - and - D - for a distance of 3.5 to 4.5 mm and repeat the adjustment if necessary.
- Install side trim. Refer to => [ Side Trim ] Pillar and Side Trims, Convertible.

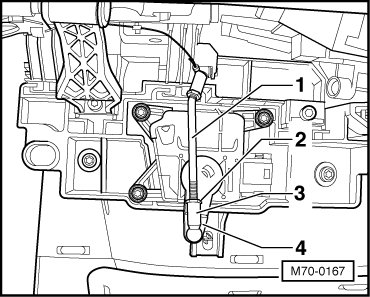

Adjusting trim height A
- Remove side trim. Refer to => [ Side Trim ] Pillar and Side Trims, Convertible.
- Disconnect pressure rod - 1 - from lever - 4 -.
- Remove screw - 2 -.
- Rotate ball socket - 3 -.
The length of the pressure rod is changed by turning ball socket - 3 - on the pressure rod. As a result, the height of the trim is changed.
- Tighten nut - 2 -.
- Connect pressure rod - 1 - to lever - 4 -.
- Check trim height - A - and readjust if necessary.
- Install side trim. Refer to => [ Side Trim ] Pillar and Side Trims, Convertible.
Adjusting trim height B
- Remove side trim. Refer to => [ Side Trim ] Pillar and Side Trims, Convertible.
- Remove the main frame of the lid module. Refer to => [ Small Trim Lid Module Assembly Overview ] and => [ Small Trim Lid Module Assembly Overview ]. Item 12 Small Trim Lid Module Assembly Overview

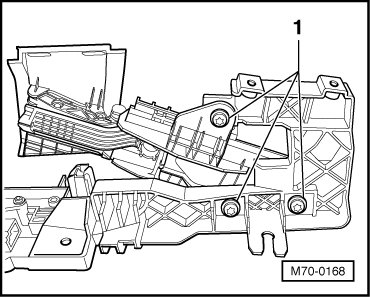

- Remove bolts - 1 -.

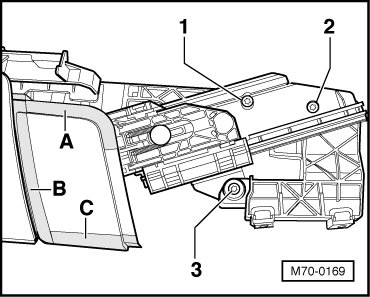

- The height and angle in areas - A -, - B - and - C - can be changed by screwing bolts - 1 -, - 2 - and - 3 - in or out.
1 = A
2 = B
3 = C
- Tighten bolts to - 1 - to 3 Nm.
- Install the main frame of the lid module. Refer to => [ Small Trim Lid Module Assembly Overview ] and => [ Small Trim Lid Module Assembly Overview ]. Item 12 Small Trim Lid Module Assembly Overview
- Check trim height - B - and readjust if necessary.
- Install side trim. Refer to => [ Side Trim ] Pillar and Side Trims, Convertible.
