Convertible Top Control Module
>>
Locations
>>

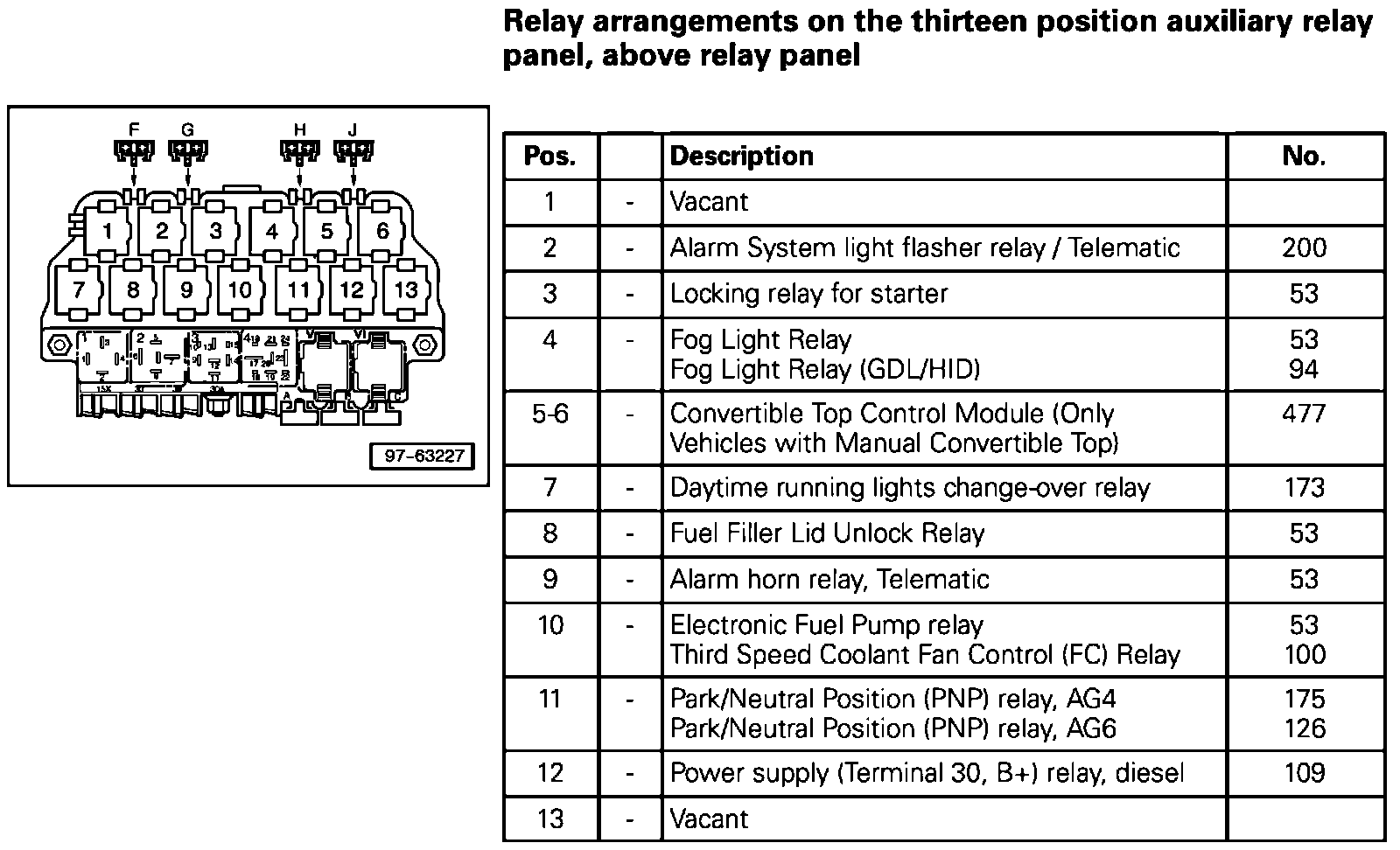

Relay Arrangements on the Thirteen Position Auxiliary Relay Panel, Above Relay Panel, From June 2004
Relay Arrangements on the Thirteen Position Auxiliary Relay Panel, Above Relay Panel, From June 2004
Relay Arrangements On The Thirteen Position Auxiliary Relay Panel, Above Relay Panel:
