Upper A-Pillar Trim

Pillar and Side Trims, Convertible

Upper A-pillar Trim

Removal

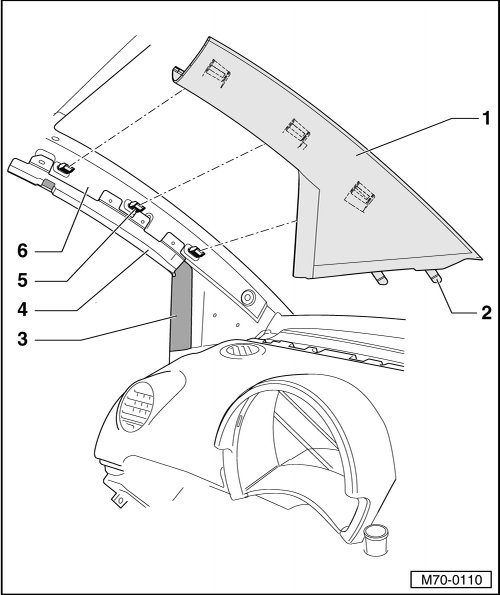

- Remove clips - 1 - for A-pillar trim - 6 - starting at the top and remove the trim.

Installation

To install, perform the steps used in removal in reverse order.

• Check clips - 5 - for trim - 1 - prior to installation and replace if necessary.

• After assembling the trim, make sure the inner door seal is properly fitted.
