Small Lid Servomotor

Pillar and Side Trims, Convertible

Small Lid Servomotor

CAUTION!
• Prior to removal and installation of the lid servomotor, remove the lid module from the side trim, refer to => [ Small Trim Lid Module Assembly Overview ] Pillar and Side Trims, Convertible Overview.

• There is a danger of damaging painted side trim parts!

Removal

- Remove the pressure rod. Refer to => [ Pressure Rod ]. Pressure Rod

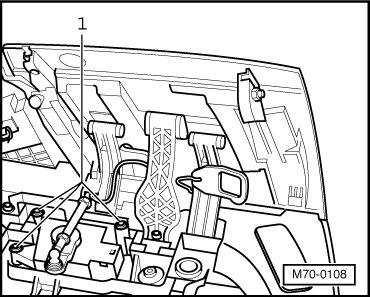

- Remove Torx bolts - 1 -.





Installation

- To install, perform the steps used in removal in reverse order.
