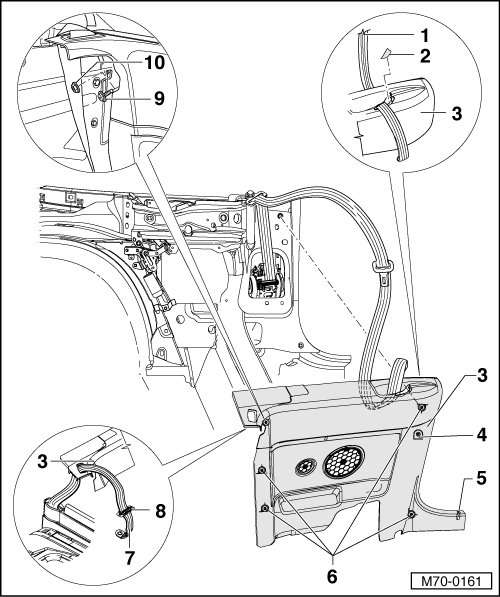

Side Trim Assembly Overview






Pillar and Side Trims, Convertible

Side Trim Assembly Overview





1 - Front Seat Belt

2 - Cover

3 - Side Trim

4 - Guide

5 - Clip

6 - Clip

7 - Rear Seat Belt

8 - Cover

9 - Bolt

• Old version

10 - Nut

• New version
