Home >> Volkswagen >> 2007 >> New Beetle Convertible (1Y7) L5-2.5L (BPS) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Comfort System With Power Windows >> Measured Value (Data) Block, Reading (Function 08) >> Evaluating Measured Value Blocks >> Display Group 011

Display Group 011

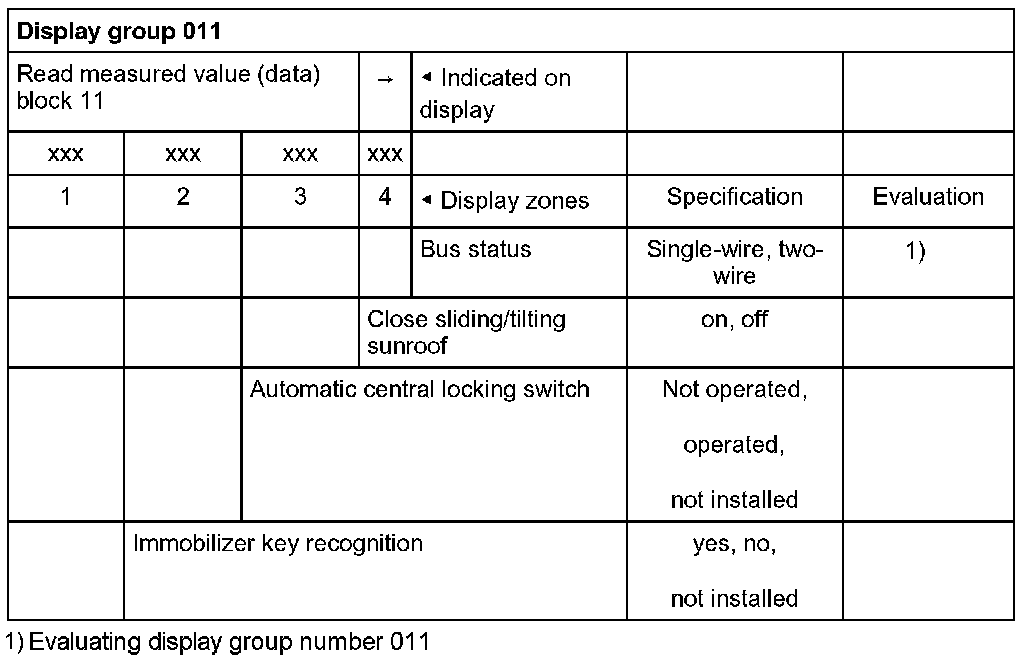

Break Down Of Display Content For Display Group Number 011

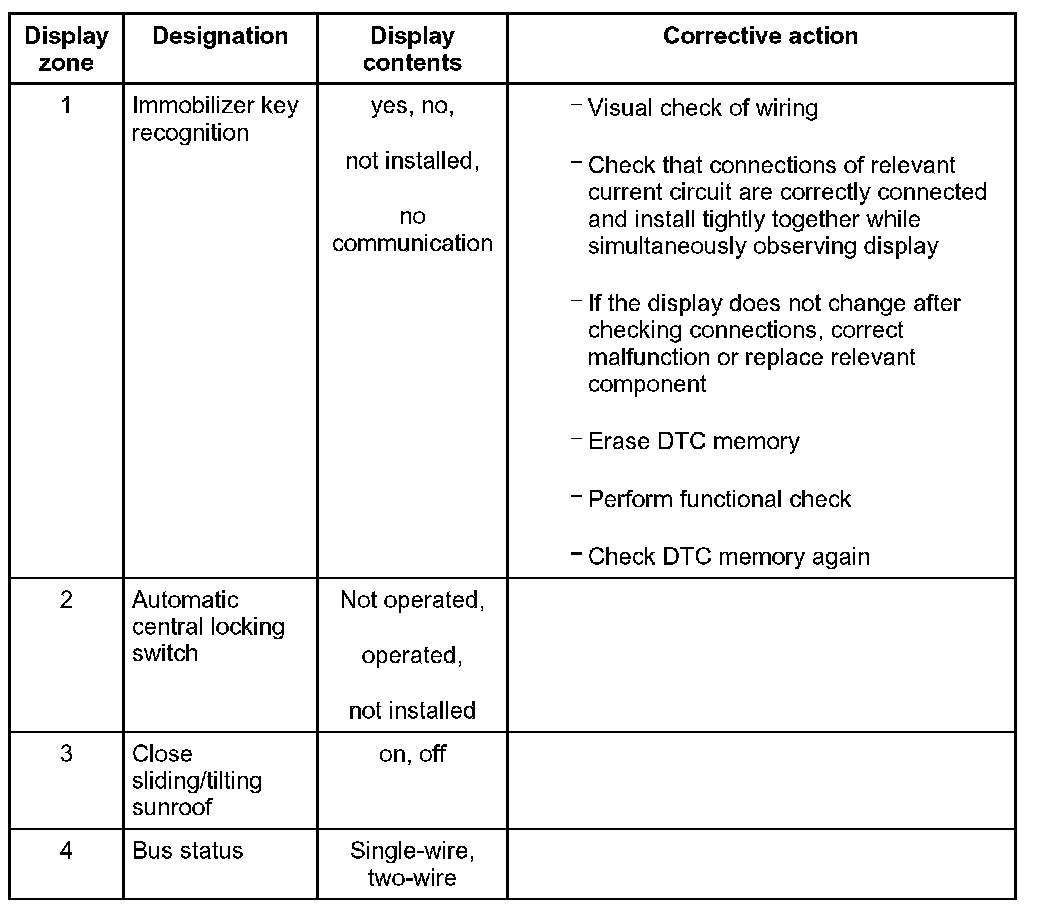

Evaluating display group number 011
