Display Group 010

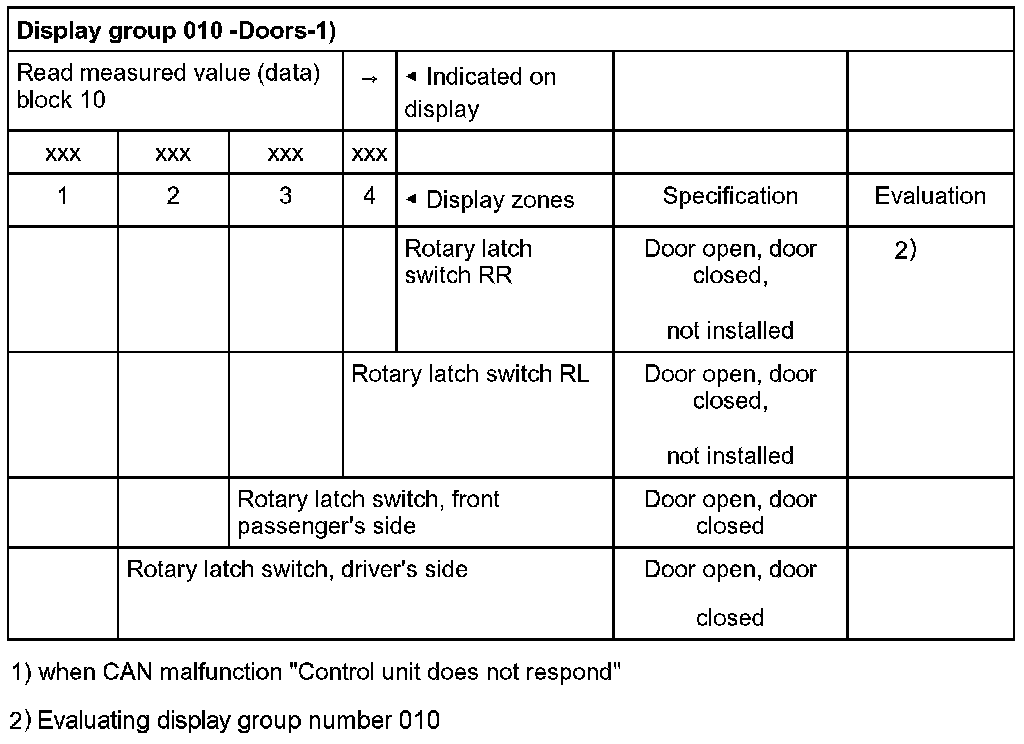

Break Down Of Display Content For Display Group Number 010

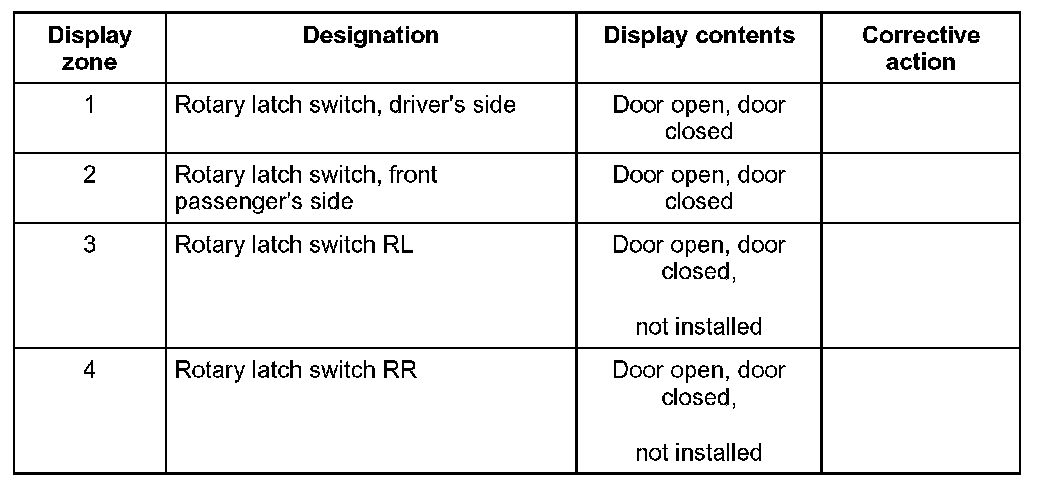

Evaluating display group number 010
