Display Group 008

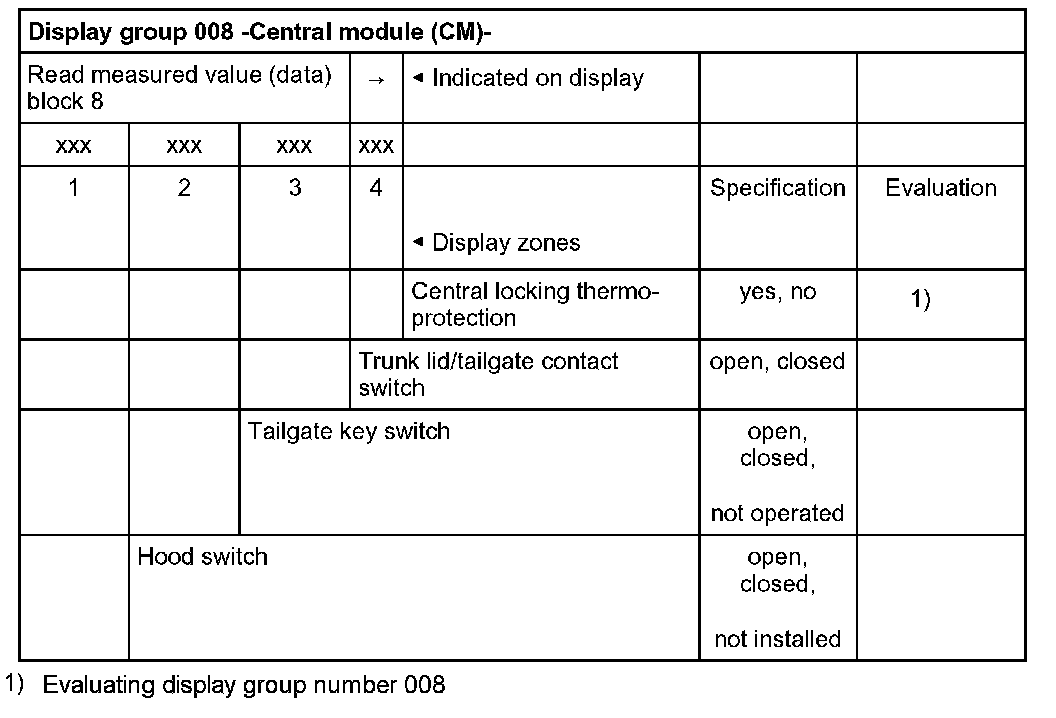

Break Down Of Display Content For Display Group Number 008

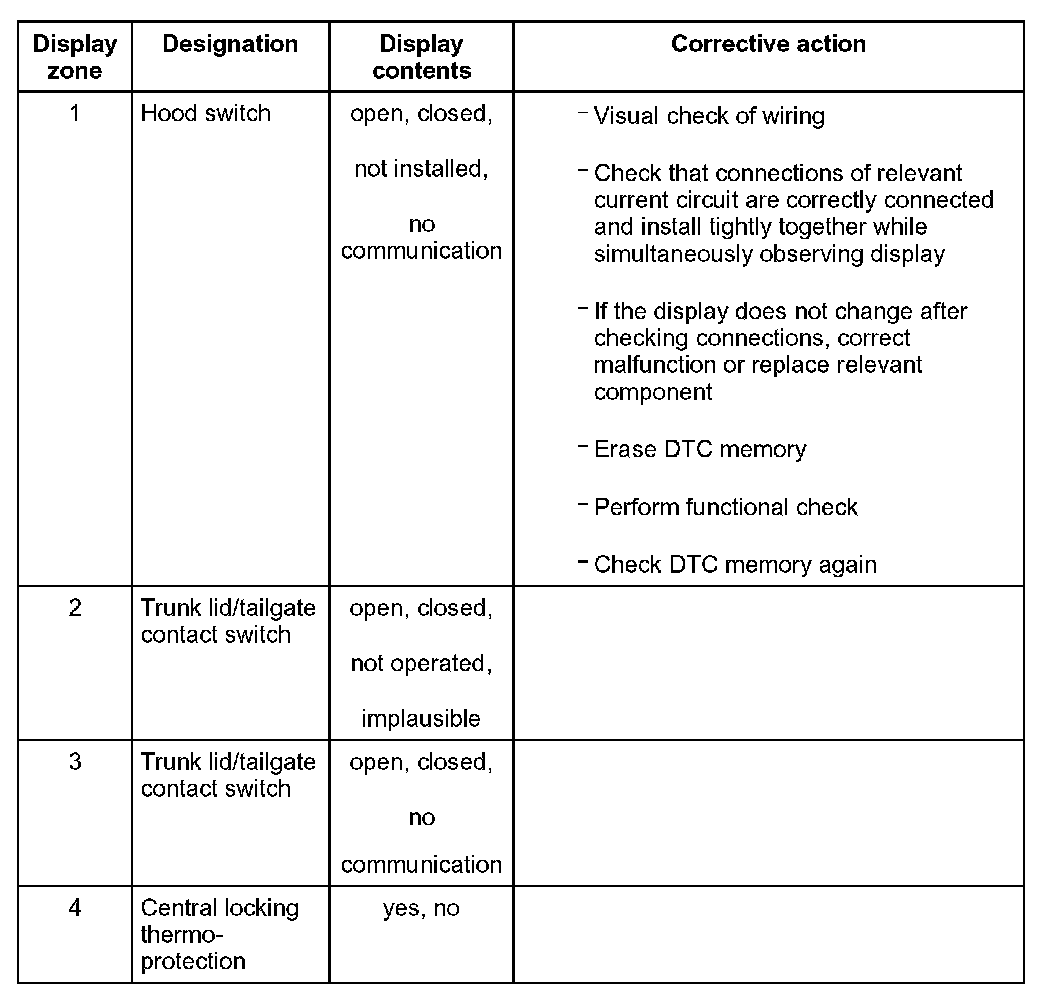

Evaluating display group number 008
