Display Group 011

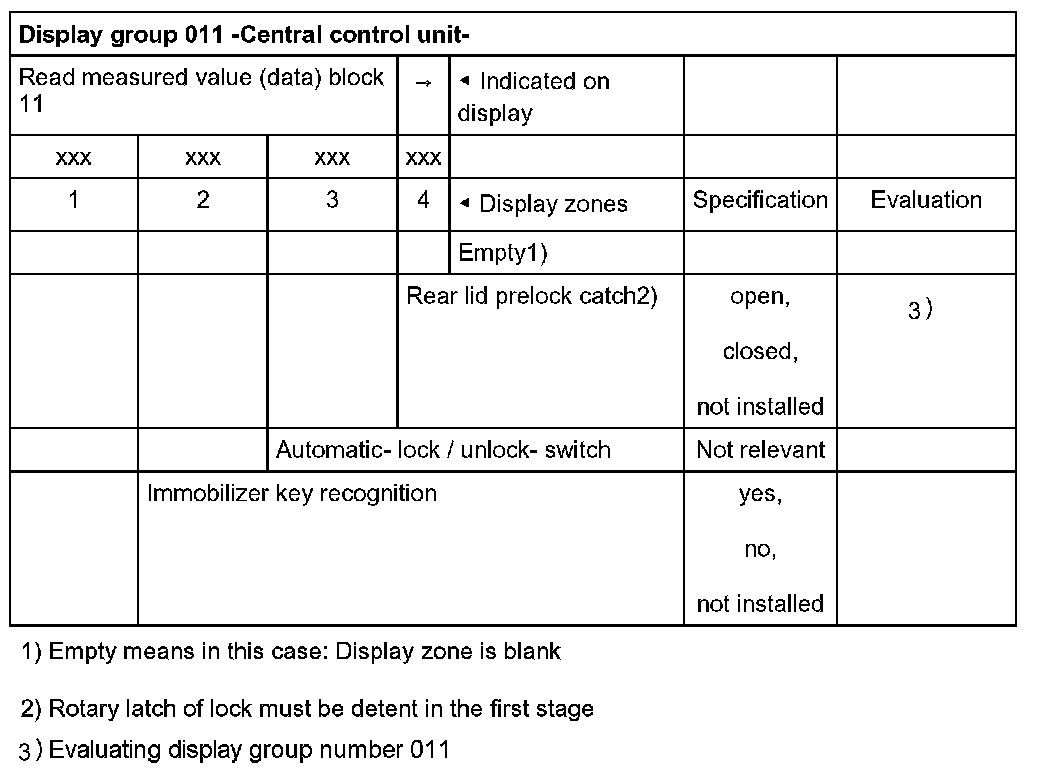

Break down of display content for display group number 011

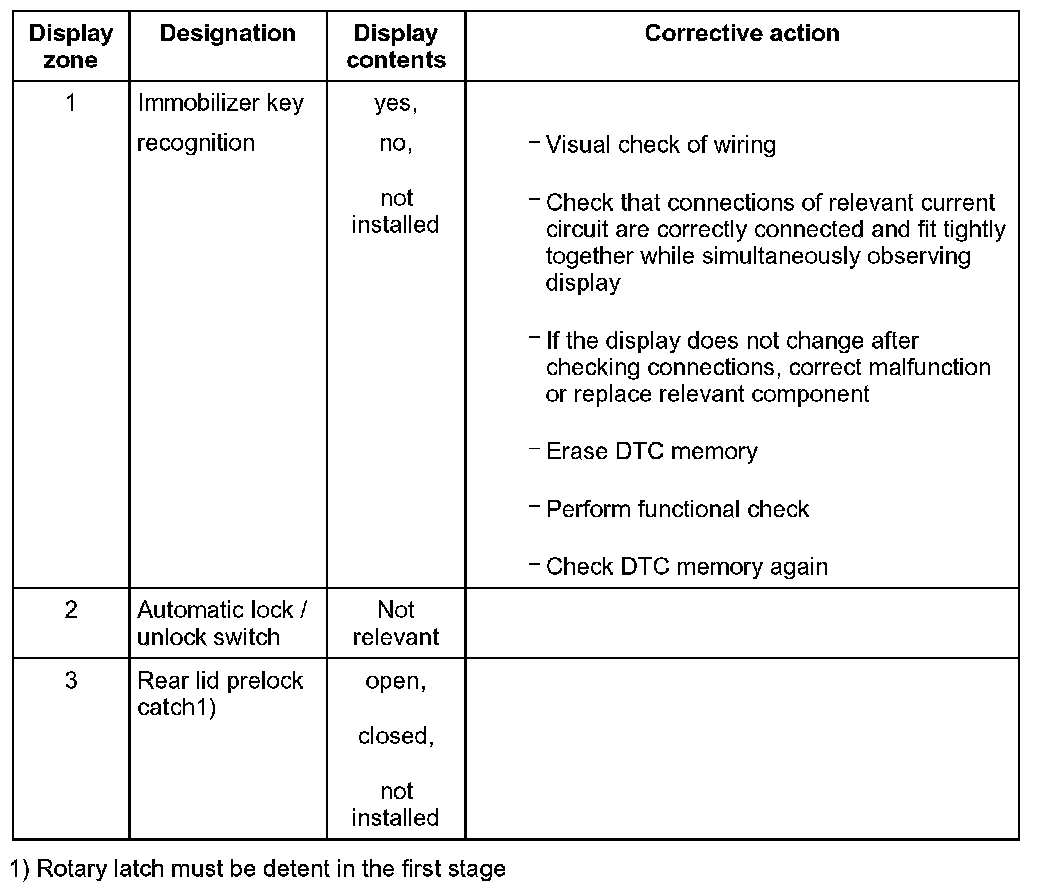

Evaluating display group number 011
