Display Group 009

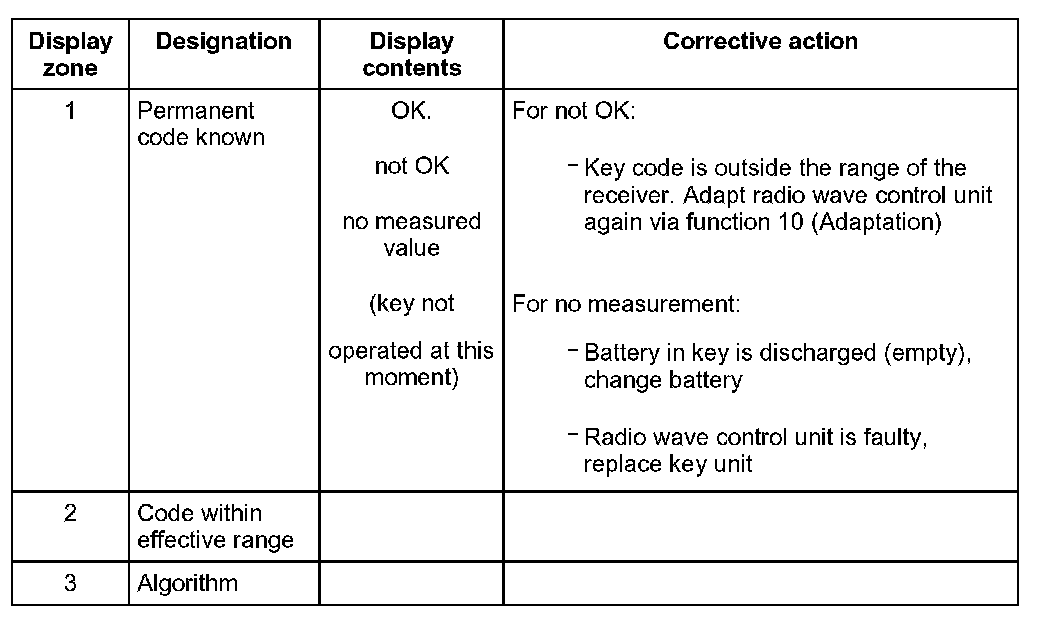

Break Down Of Display Content For Display Group Number 009







Evaluating display group number 009
