Display Group 007

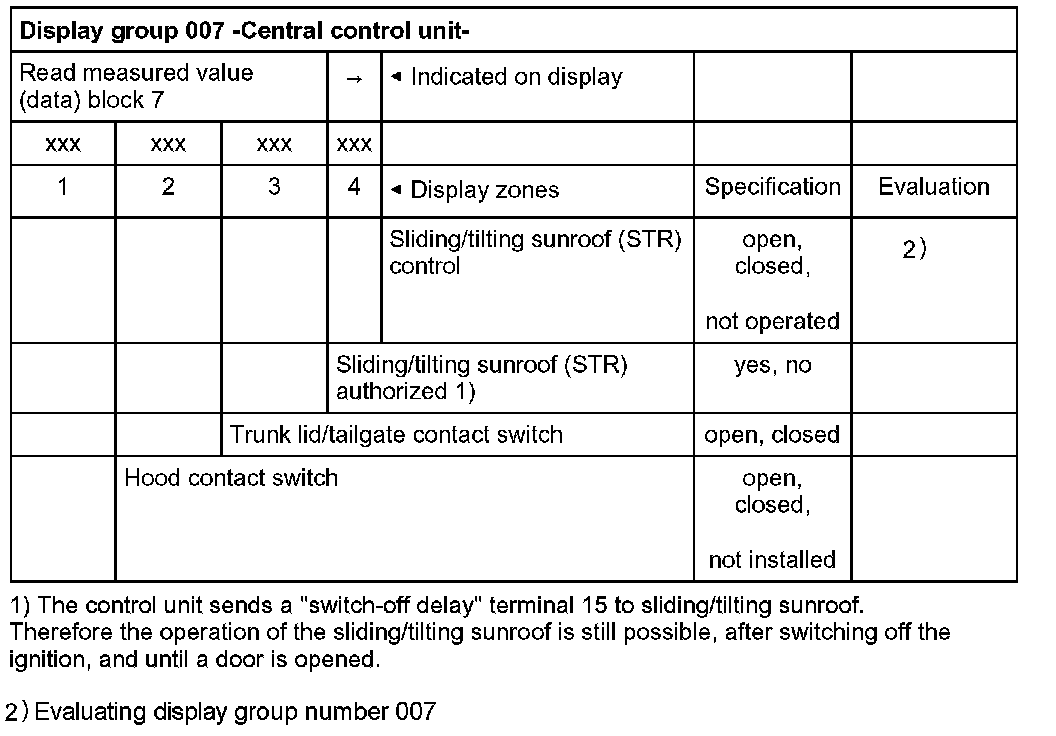

Break Down Of Display Content For Display Group Number 007

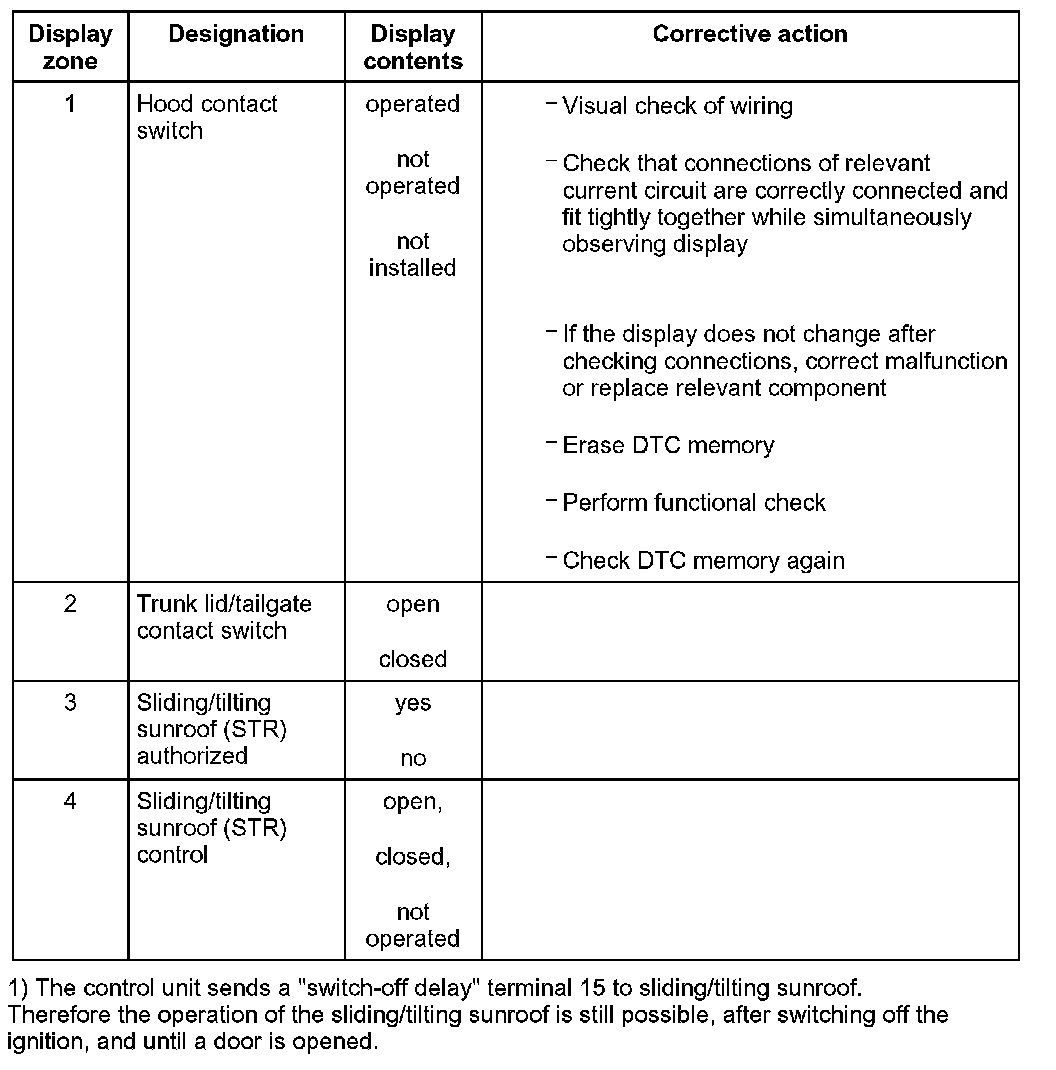

Evaluating display group number 007
