Home
>>
Volkswagen
>>
2007
>>
New Beetle Convertible (1Y7) L5-2.5L (BPS)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Central Locking, On Board Diagnosis (OBD)
>>
Measured Value (Data) Blocks
>>
Evaluated Measured Value Blocks
>>
Display Group 004
Display Group 004

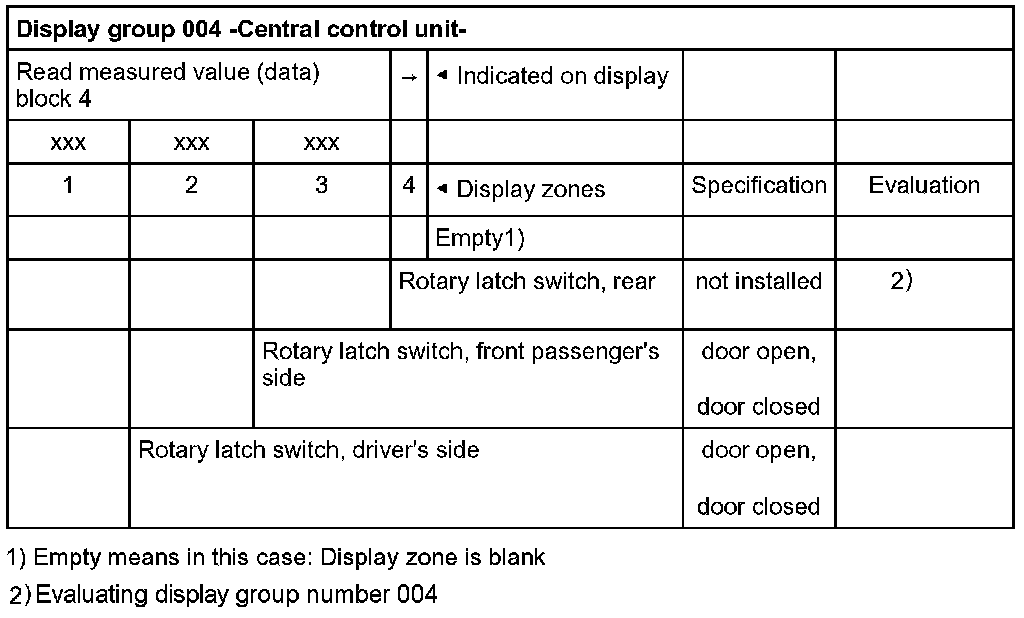

Break Down Of Display Content For Display Group Number 004

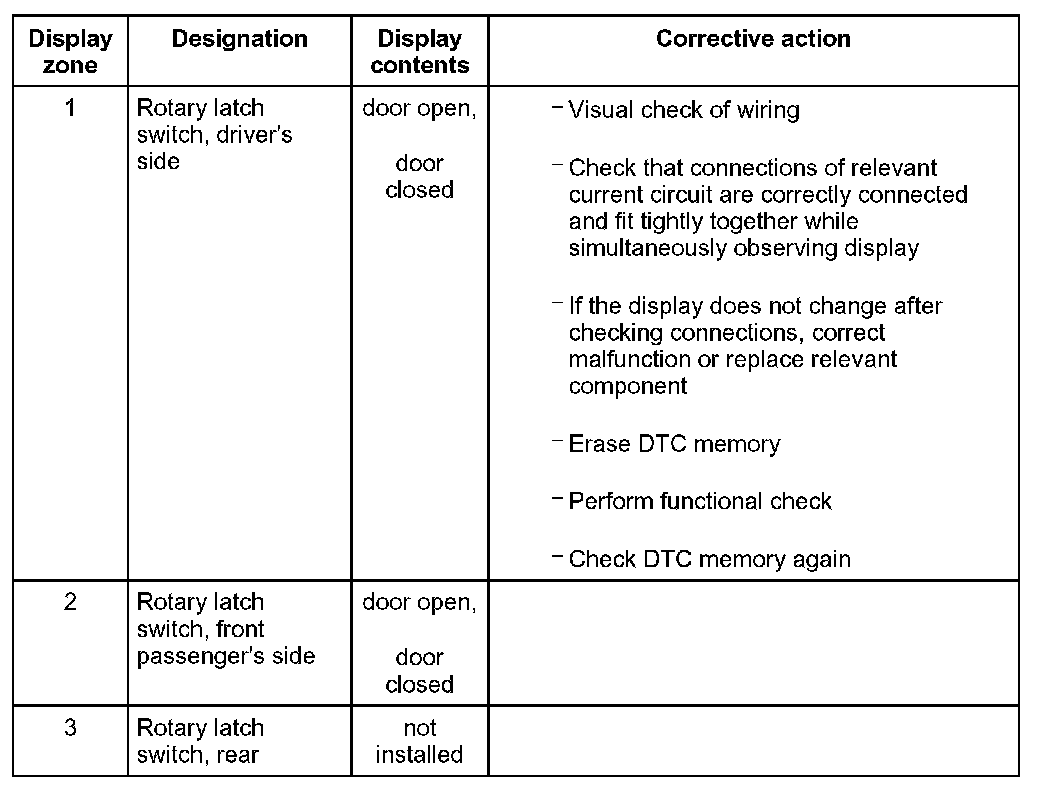

Evaluating display group number 004
