Central Locking, on Board Diagnosis (OBD)

Central Locking System Functional Variations

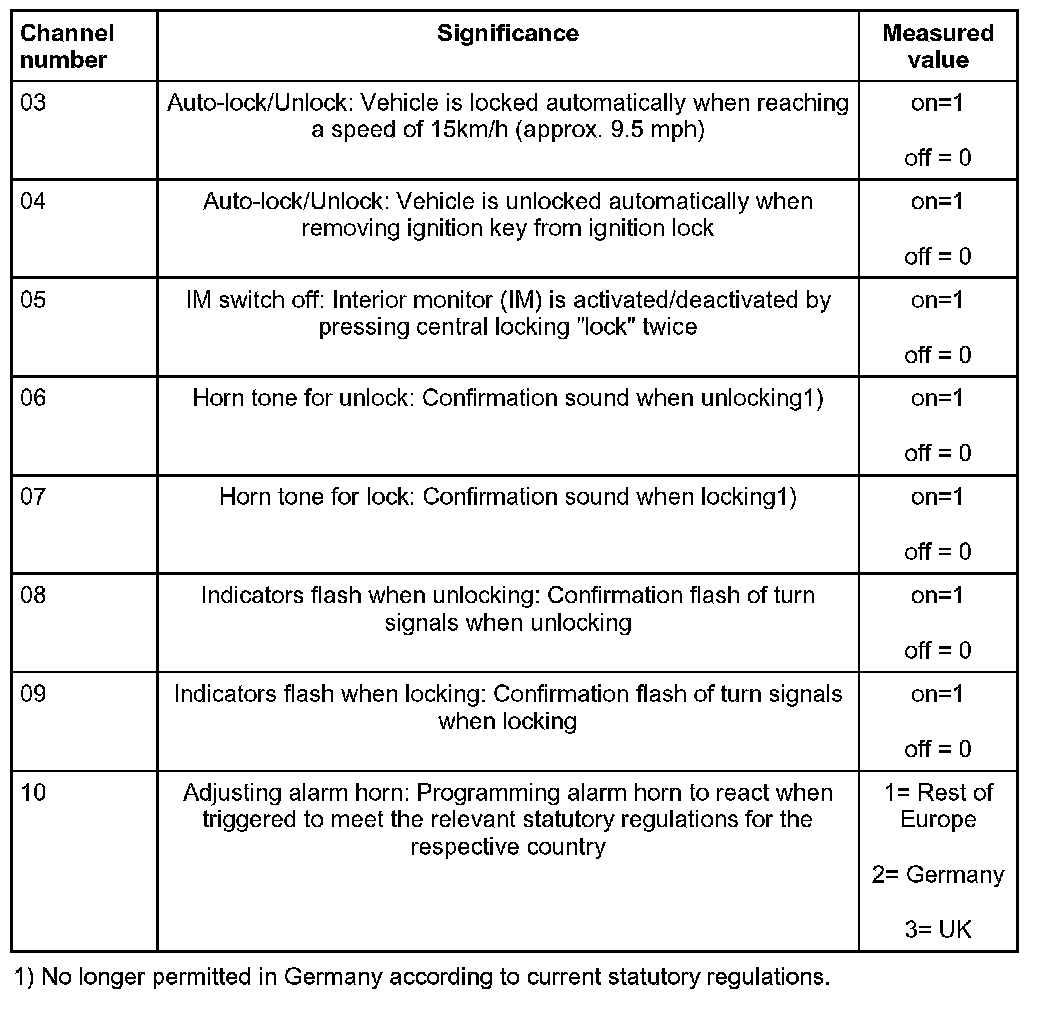

The various functions listed in the table can be called up by selecting channel numbers 03...10 and adapted.







The adaptation shown here is only an example.

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons -1- and -0- (10 selects the "Adaptation" function).

Rapid data transfer Q
10 - Adaptation

Indicated on display:
- Confirm entry with -Q- button.

Adaptation
Enter channel number XX

Indicated on display:
- Press buttons -0- and -6- (channel number 06 switches the horn on or off when locking).

Adaptation Q
Enter channel number 0 6

Indicated on display:
- Confirm entry with -Q- button.

Channel 6 Adaptation 0 ->
Unlock Beep 0 <-1 3->

Indicated on display:
- Press -> button.

Indicated on display:

Channel 6.....Adaptation 0 ->
Enter adaptation value XXXXX

- Press -> button.
- Press the -0- button four times and then the -1- button (e.g. 00001).

Indicated on display:

Channel 6.....Adaptation 0 Q
Enter adaptation value 00001,

- Confirm entry with -Q- button.

Indicated on display:

Channel 6 Adaptation 1 ->
Unlock Beep 1 <-1 3->

- Confirm entry with -Q- button.

Indicated on display:

Channel 6 Adaptation 1 ->
Q Save amended value?

- Confirm entry with -Q- button.

Channel 6 Adaptation 1 ->
Amended value is saved

Indicated on display:
- Press -> button.

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons -0- and -6- to end the output.

Indicated on display:

Rapid data transfer Q
06 End output

- Confirm entry with -Q- button.

Indicated on display:

Rapid data transfer HELP
Enter address word XX

- Switch off ignition.
- Disconnect connection to scan tool V.A.G 1551.
