Location

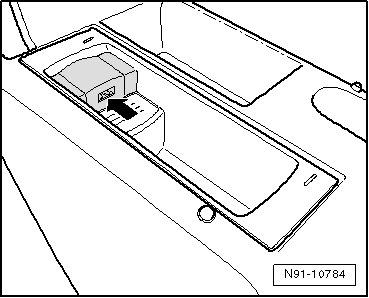

Installed Location In Center Console





The USB connection baseplate for connecting USB memory devices (USB memory sticks or MP3 player) can be ordered as an accessory.

The USB storage medium is connected to the USB connection baseplate. The contents can be displayed and selected on radio/radio-navigation system display. The USB connection baseplate provides the voltage for the USB memory device.

Supported Music Data Formats

Only music data in the following data formats can be played back:

• MP3 (MPEG1 Layer 3 from 32 to 320 kbps)

• WMA (from 8 to 192 kbps)

• WAV (16 kHz sampling frequency with 16 bit encoding, stereo)

• OGG Vorbis (to q10, 48 kHz, Stereo)

DMR music formats are not supported!

Supported Storage Media

Trouble-free function is assured only when the memory sticks, MP3 players and radios authorized by Volkswagen are used. The use of memory sticks or MP3 players from other manufacturers may not be guaranteed. However, the storage medium is to have one of the two USB certificates as a minimum requirement, see diagram.





The following storage media are supported:

Approved MP3 players:

• Manufacturer Cebop, model Run XL, memory size 1024 MB, connection via USB-A

• Manufacturer Maxfield, model Max Robot, memory size 512 MB, connection via USB-A

• Manufacturer Philips, model SA 177, memory size 512 MB, connection via USB-A

• Manufacturer Grundig, model MP 500, memory size 256 MB, connection via USB-A

• Manufacturer Mambox, model Color, memory size 256 MB, connection via USB-A

• Manufacturer Trekstor, model Music Stick 100, memory size 256 MB, connection via USB-A

• Manufacturer Trekstor, model 21617, i-Beat, memory size 512 MB, connection via mini-USB

• Manufacturer Time, model DPA-20 FL+, memory size 128 MB, connection via USB

Approved memory sticks:

Manufacturer Blue Pearl, model CN Memory, memory size 64 MB, connection via USB-A

Manufacturer Buffalo, model Firestix, memory size 2 GB, connection via USB-A

Manufacturer Lexar Media, model Jump Drive, memory size 128 MB, connection via USB-A

Manufacturer LG, model Mirror USB Drive, memory size 128 MB, connection via USB-A

Manufacturer Silver Pearl, model Micro X, memory size 1024 MB, connection via USB-A

Manufacturer Pretec, model I-Disk Tiny 2.0, memory size 128 MB, connection via USB-A

Approved radio:

Proper function is only guaranteed if an RCD-series Volkswagen radio or RNS-series Volkswagen navigation system was installed at the factory. Proper function is not guaranteed when using commercial radios.

Notes on Operation

• Never remove the memory device if you have selected the USB connection baseplate as the source. It may destroy the storage medium.

• Do not insert an MP3 player directly in the USB connection baseplate, the connection could be damaged. Always use a USB extension cable instead.

• Do not connect any other devises to the USB connection baseplate other than a USB memory stick or an MP3 player. It is not possible to play hard drives or USB hubs via the USB connection baseplate.

• The maximum input of the USB memory device must not exceed 2.5 W (500 mA/5 V).

• Never insert metal objects into the USB connection baseplate. They may cause a short circuit and damage the unit.

• If the USB connection baseplate does not recognize the memory device after 15 seconds, remove the device and insert it again.

• Some MP3 players must be activated with a button to create the USB connection. Refer to the Operating Instructions.

• The permissible temperature range of USB sticks and MP3 players is limited and often lies between 0° C and 40° C. For this reason, inform the customer that the storage medium must not be left in the vehicle for extended periods.
