Anti-Theft Alarm System and Interior Monitoring Assembly Overview

Convertible => Anti-Theft Alarm System and Interior Monitoring

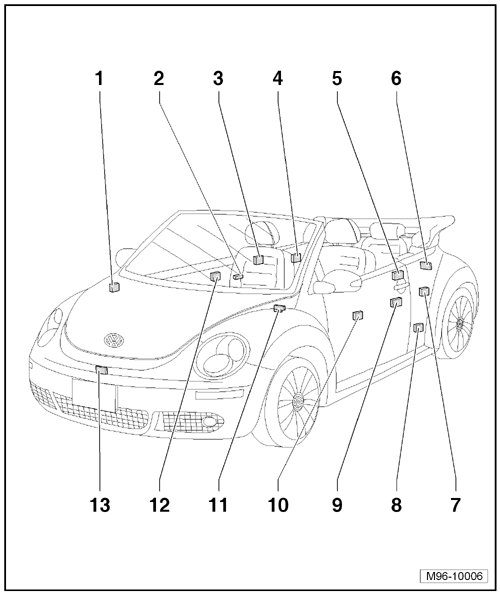

• Components of Anti-Theft Alarm System are dependent on vehicle equipment.





1 Alarm Horn (H12)

• In front of the plenum chamber on the right side

• Removing and installing => [ Alarm Horn ] Anti-Theft Alarm System and Interior Monitoring

2 Radar Interior Monitoring Control Module 2 ( G305)

• In front passenger door

3 Front Passenger Door Contact Switch (F3)

• In Front Passenger Door Central Locking Lock Unit (F221)

4 Radar Interior Monitoring Control Module 4 ( G445)

• Behind the right side trim

5 Driver Door Contact Switch (F2)

• In Driver Door Central Locking Lock Unit (F220 )

6 Trunk Lock/Alarm/Central Locking Switch (F124 )

7 Interior Monitoring Deactivation Switch (E267 )

• Inside the left side trim panel

• Removing and installing, refer to => [ Passenger Compartment Monitoring Switch ] Anti-Theft Alarm System and Interior Monitoring

• Checking, refer to => [ Passenger Compartment Monitoring Switch, Checking ] Passenger Compartment Monitoring Switch, Checking

8 Radar Interior Monitoring Control Module 3 ( G444)

• Behind the left side trim panel

9 Driver Door Control Module (J386)

• In driver door

10 Comfort System Central Control Module (J393)

• Inside the footwell on the driver side under the instrument panel

• Coding, refer to => [ Comfort System Central Control Module, Coding ] Comfort System Central Control Module, Coding

• Checking the Convertible components, refer to => [ Anti-Theft Warning System, Checking ] Anti-Theft Warning System, Checking

11 Front Passenger Door Control Module (J387)

• In front passenger door

12 Radar Interior Monitoring Control Module 1 ( G303)

• In driver door

13 Front Hood Switch (F266)

• In hood lock

• Removing and installing, refer to => [ Front Hood Switch ] Interior Lamps and Switches
