A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P117A
P117A

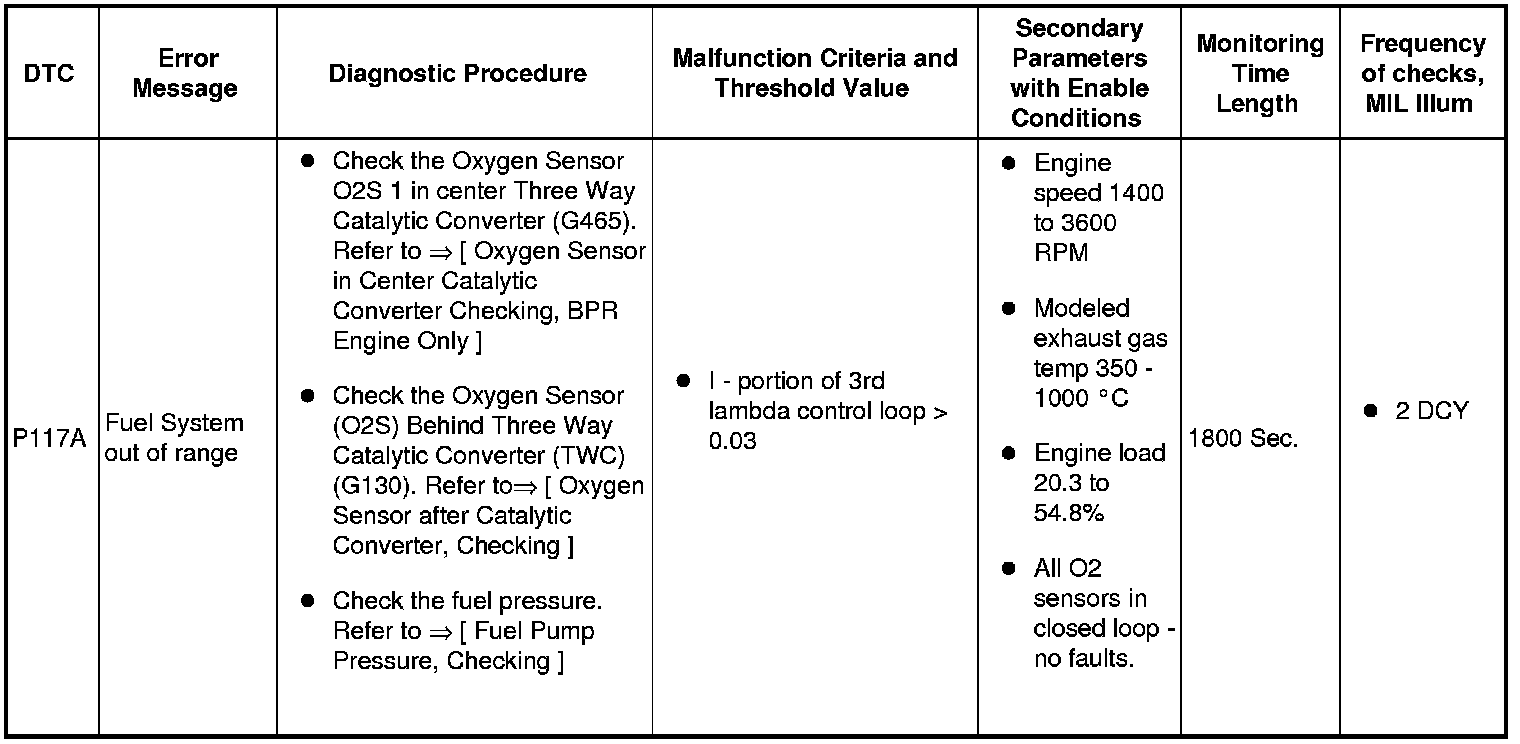

DTC Tables
P117A:
