Backup Light Bulb: Service and Repair

Back-up Light Bulb From 07.05, Replacing

Removing

- Remove back-up light.

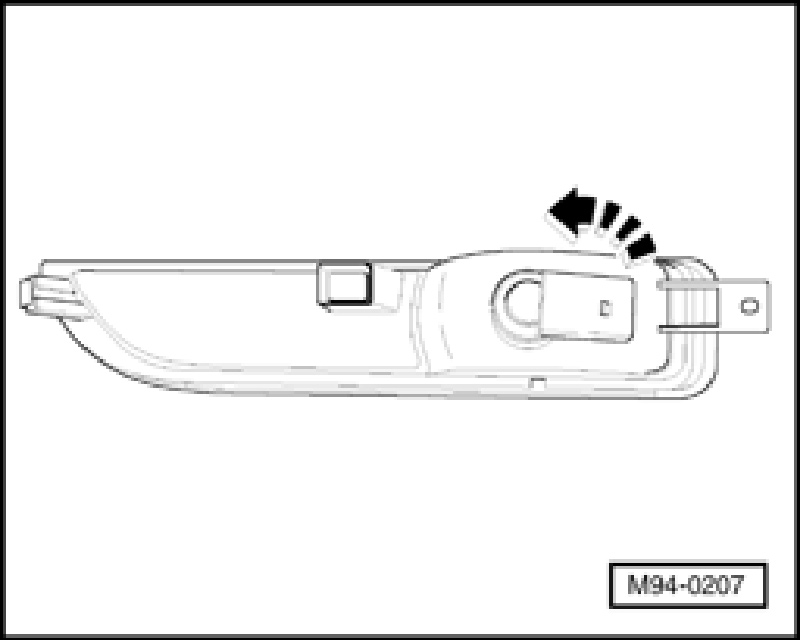

- Turn bulb holder in direction of -arrow- and remove from housing.
- Remove bulb from bulb holder.

Installing

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture and/or grease from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

Install in reverse order of removal, noting the following:

NOTE: When installing, make sure bulb holder engages in housing by turning in opposite direction shown -arrow-.
