Display Group 001

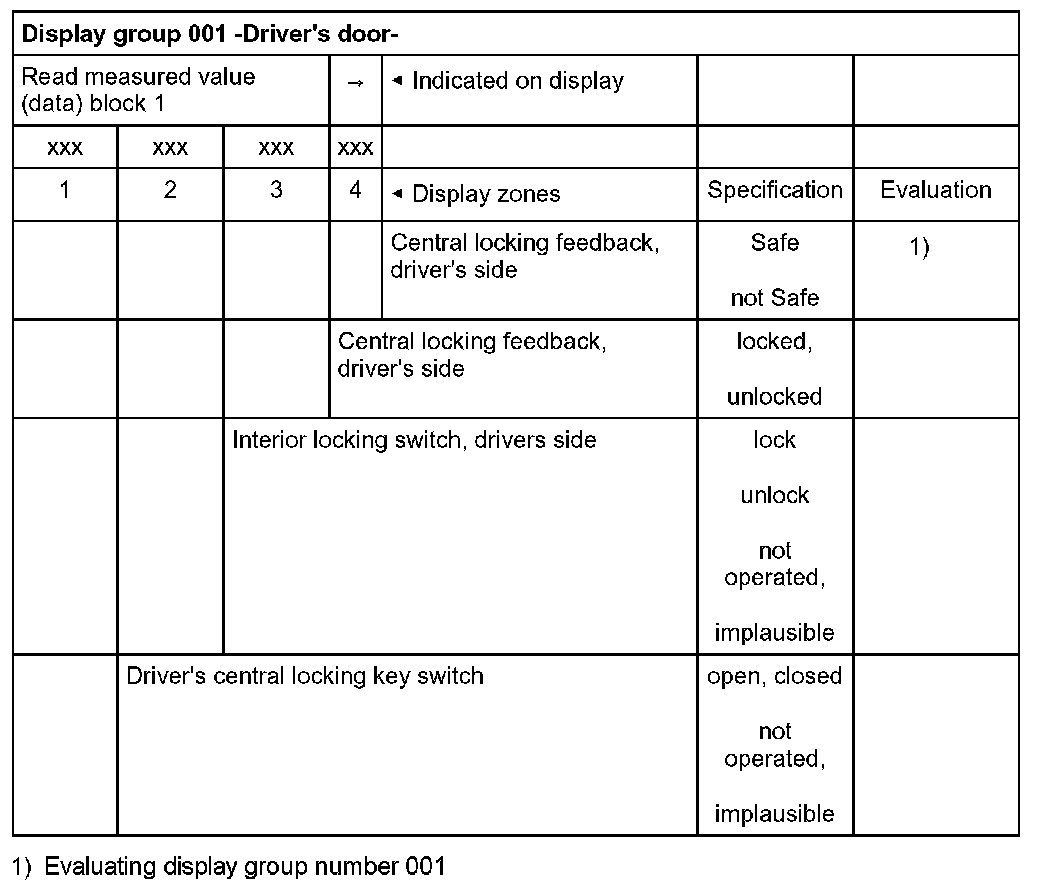

Break Down Of Display Content For Display Group Number 001

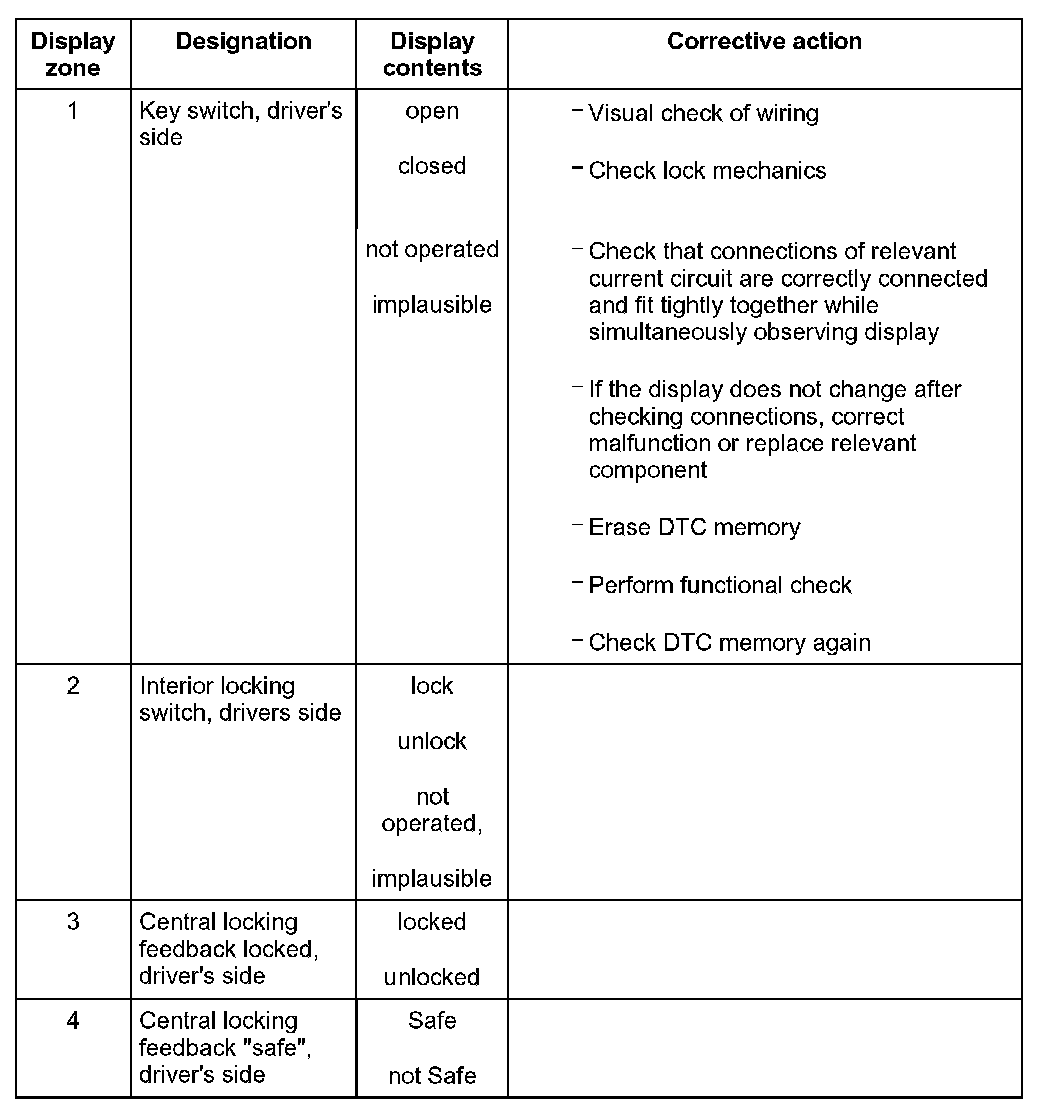

Evaluating display group number 001
