Fuel Supply - Fastener Tightening Specifications

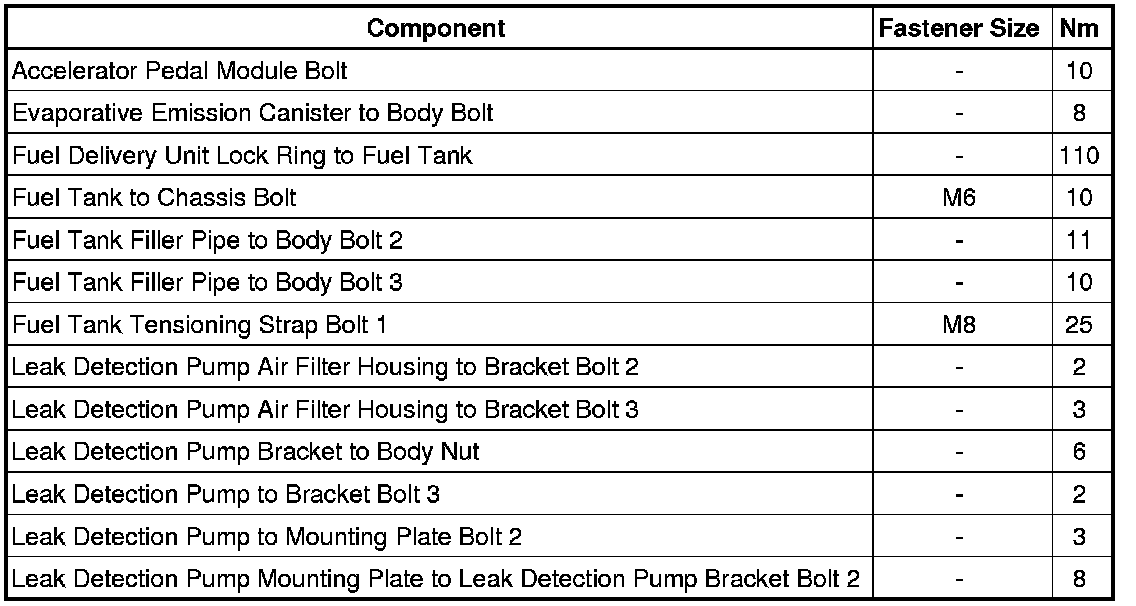

Fastener Tightening Specifications





• 1 Always replace

• 2 Eos

• 3 GTI
