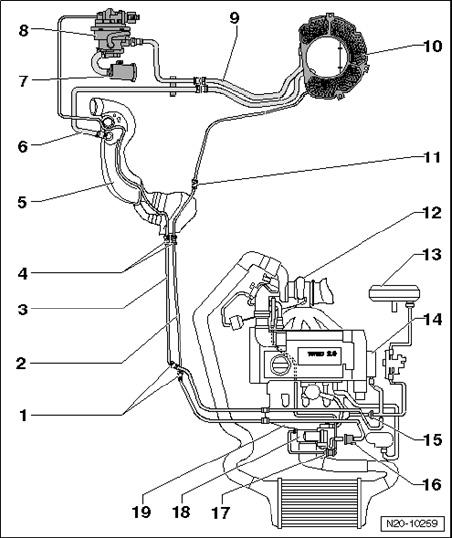

EVAP Canister System, Overview

EVAP Canister System, Overview







1 - Separating point
- At right, front in engine compartment under coolant expansion tank
2 - Vent line
- White
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- Installed location: at right on underbody
- Secured to fuel tank
3 - Vent line
- Green
- From engine to Leak Detection Pump (LDP) V144
- Installed location: at right on underbody
- Secured to fuel tank
4 - Separating point
- At right, front on fuel tank in area of fuel filter
5 - Filler tube
6 - Vent line
- From filler connection to EVAP canister
7 - Air filter housing
- For Leak detection pump (LDP) V144
8 - Leak detection pump (LDP) V144
- Component location: Under wheel housing liner in right rear wheel housing
- Checking fuel supply system for leaks.
9 - Connecting line
- From Leak Detection Pump (LDP) V144 to EVAP canister
- Clipped in on bracket
10 - EVAP canister
- Component location: Bottom of spare wheel well
11 - Separating point
- At right rear on fuel tank
12 - Turbocharger
13 - Brake booster
14 - Vacuum pump
15 - Non-return valve
- Installed location: Arrow points in direction of flow
16 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve N80
- Checking
17 - Double check valve
- Checking Components, checking
18 - Throttle valve control module J338
19 - Intake manifold
