Electric Seat Longitudinal Adjuster, Removing and Installing

Electric Seat Longitudinal Adjuster, Removing And Installing

Removal and installation of seat longitudinal adjuster is described for left backrest frame. Removal and installation of the right seat longitudinal adjuster is performed in the same way.

Removing
- Mount the fixture for seat repair VAS 6136 on the engine and transmission holder VAS 6095.
- Remove front seat.
- Attach the seat to the fixture for seat repair VAS 6136.
- Remove front right seat trim.
- Remove left power seat trim.
- Remove retainer and power seat bracket.
- Remove front seat drawer mount.
- Remove front seat backrest.
- Remove cover and upholstery from front seat backrests

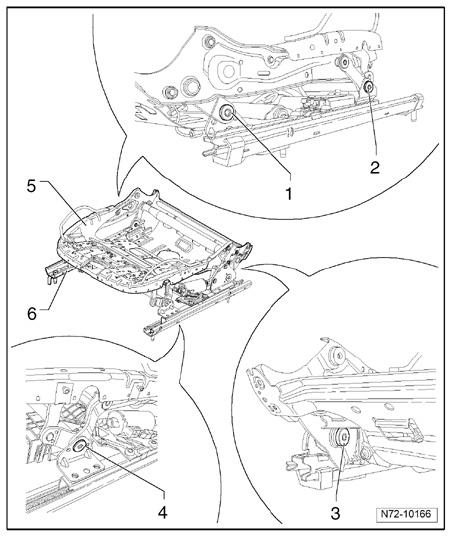

- Remove screws - 1 - and - 2 - on right side.
- Remove screw - 3 - in rear area.

NOTE: Screw - 3 - in installation position points from inside toward outside.

- Remove screw - 4 - in front area.
- Remove seat pan - 5 - from longitudinal adjuster - 6 -.

Installing
- Installation is performed in the reverse order of removal.
