Instrument Panel Side Covers, Removing and Installing



Instrument Panel Side Covers, Removing And Installing

Removing

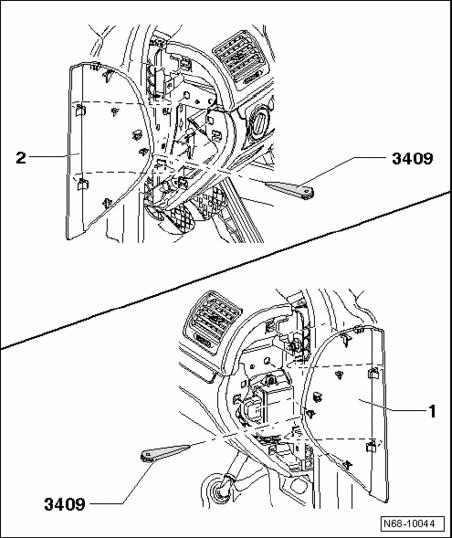

- Using trim removal wedge 3409, pry right side instrument panel cover - 1 - out of locking mechanisms.
- Using trim removal wedge 3409, pry left side instrument panel cover - 2 - out of locking mechanisms.

Installing
- Installation is performed in the reverse order of removal.
