Drivers Side Right Trim, Removing and Installing

Drivers Side Right Trim, Removing And Installing

Removing
- Switch off ignition.
- Remove side instrument panel cover on front passenger-side.
- Remove right trim panel on drivers side.
- Remove center cover.

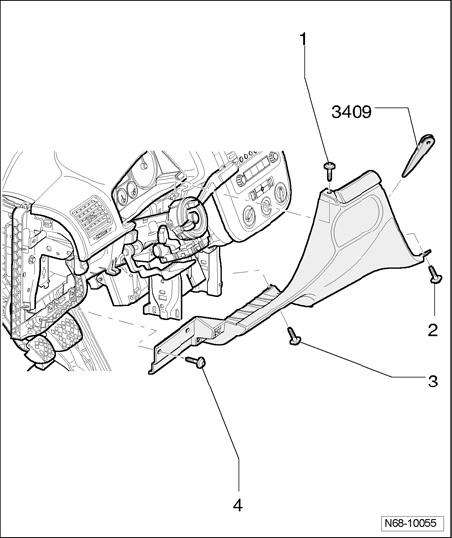

- Remove bolts - 1 -, - 2 -, - 3 - and - 4 - (1.5 Nm).
- Using trim removal wedge 3409, disengage trim panel from mounts.

Installing
- Installation is performed in the reverse order of removal.

NOTE: When installing, bolts must be installed in the sequence - 1 -, - 2 -, - 3 -, and - 4 (1.5 Nm).
