Drivers Side Footwell Cover, Removing and Installing



Drivers Side Footwell Cover, Removing And Installing

Removing
- Switch off ignition.

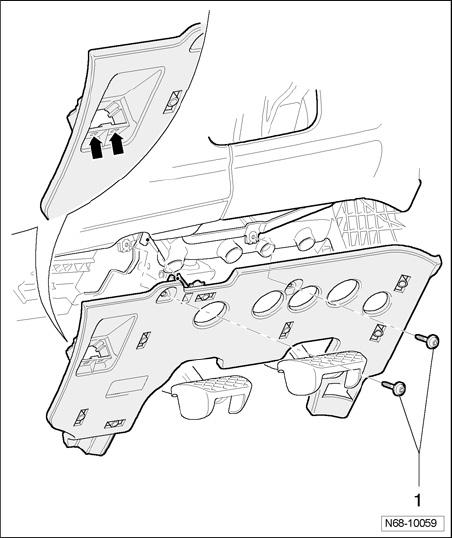

- Remove the two bolts - 1 - (1.5 Nm).
- Remove cover from mounts and disconnect wiring harness from footwell lights.
- Press the two locking mechanisms - arrows - and disconnect diagnostic connector from cover.

Installing
- Installation is performed in the reverse order of removal.
