Center Instrument Panel Trim, Removing and Installing

Center Instrument Panel Trim, Removing And Installing

Removing
- Remove instrument panel center vent:
- Vehicles without Climatronic
- Vehicles with Climatronic

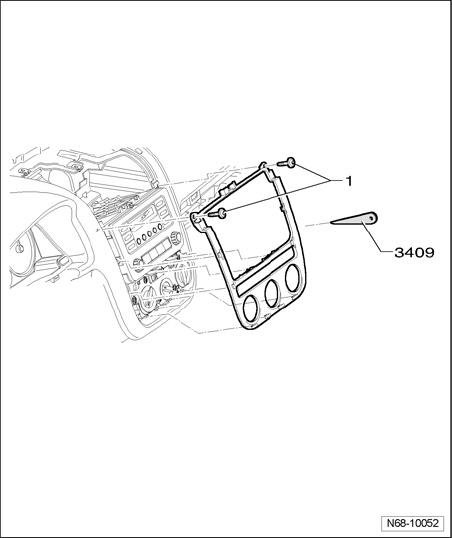

- Remove the two bolts - 1 - (1.5 Nm).
- Using trim removal wedge 3409, pry trim in area of locking mechanisms out of mounts in instrument panel.

Installing
- Installation is performed in the reverse order of removal.
