Release Lever, Removing and Installing

Release Lever, Removing And Installing

Removing

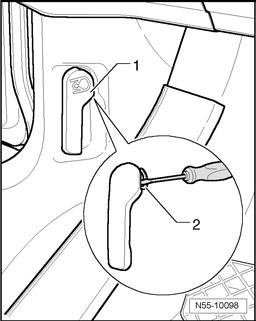

- Engage the release lever - 1 - and release hood.
- Insert a small screwdriver into gap between release lever - 1 - and clip - 2 -.
- Remove clip - 2 - from release lever - 1 - and pull release lever off.

Installing







- Slide clip - 2 - completely into release lever - 1 -.
- Then push release lever - 1 - onto mount in mounting bracket and lock the release lever.
- Before the hood is closed, a function test of the release lever and hood release cable must be performed.
