Battery, Transmitter/Receiver Unit, Fuse and Wiring Harness

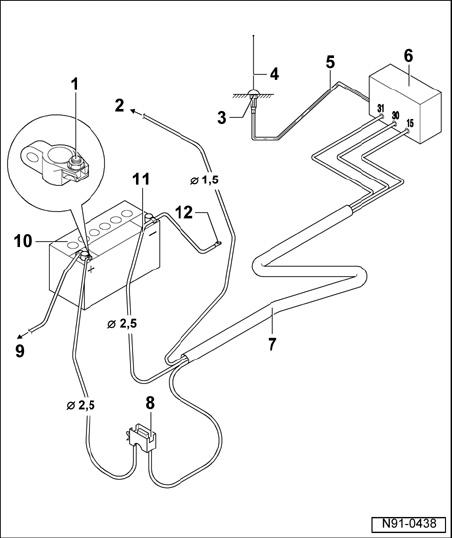

Battery, Transmitter/receiver Unit, Fuse And Wiring Harness, Overview







1. Positive connection
- Red wire with suitable connection
2. to terminal 15a
- Connection to terminal 15a:
- Ensure wire is protected by fuse
- Fuse max. 15A
3. Antenna Ground (GND)
- Ensure correct Ground (GND) connection to body
- Antenna location must be treated with suitable corrosion protection
4. Transmitting/Receiving Antenna
- Component locations:
5. Shielded antenna wire
- Wire with coaxial connector
6. Telephone or two-way radio transmitter/receiver unit
7. Wiring harness
- Voltage supply positive via read wire, 2.5 sq.mm cross section
- Voltage supply negative via brown wire, 2.5 sq.mm cross section
- If necessary, wire to terminal 15a via black wire 1.5 sq.mm cross section
8. Fuse holder
- Install next to battery
9. To starter
10. Battery
- Location in luggage compartment left and right behind side panels.
11. Negative wire
12. Body Ground (GND)
