Home >> Volkswagen >> 2007 >> Eos (1F7) L4-2.0L Turbo (BPY) >> Repair and Diagnosis >> Locations >> Control Modules >> Driver's Entry Assistance Control Module - J572

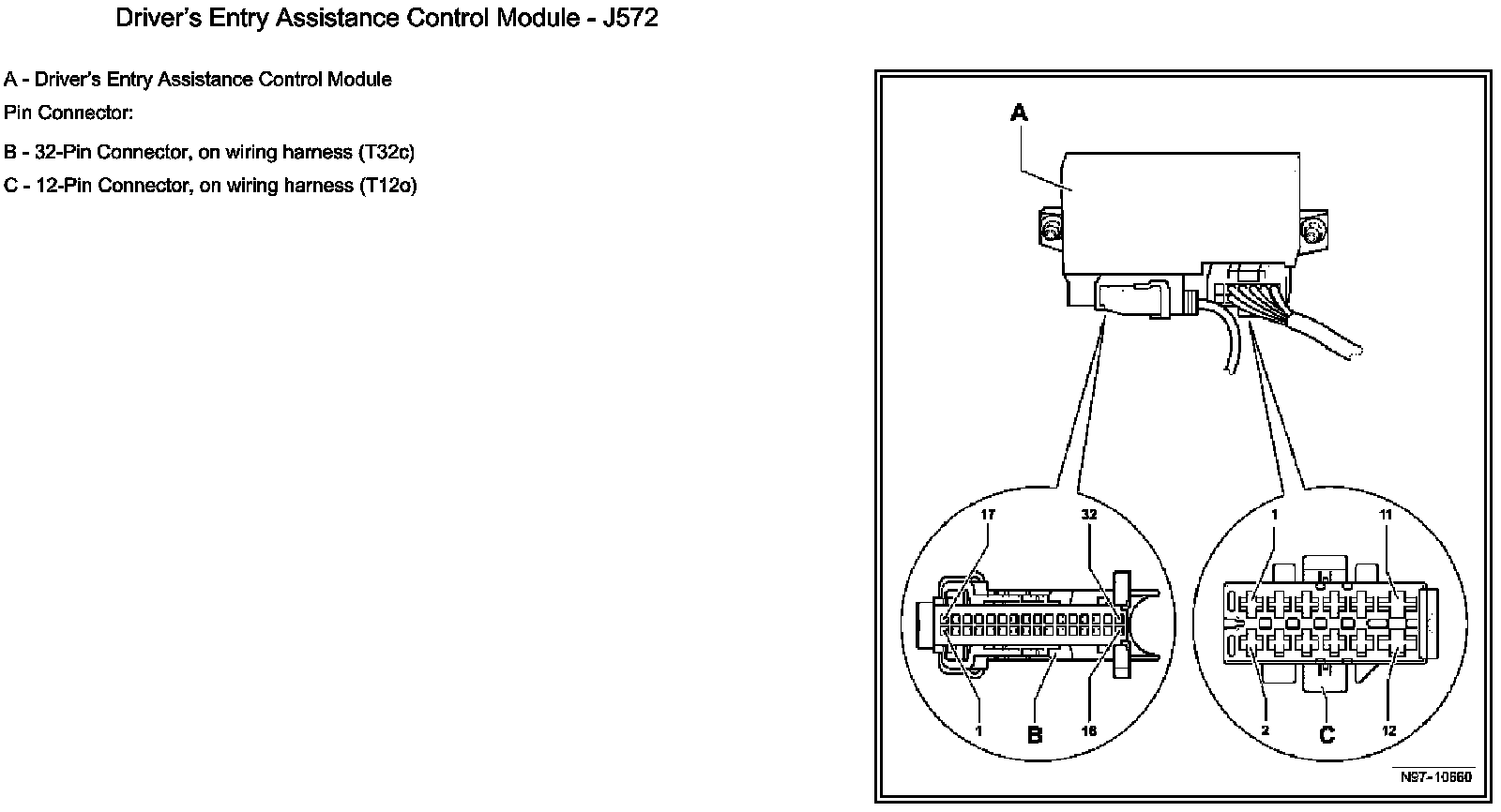

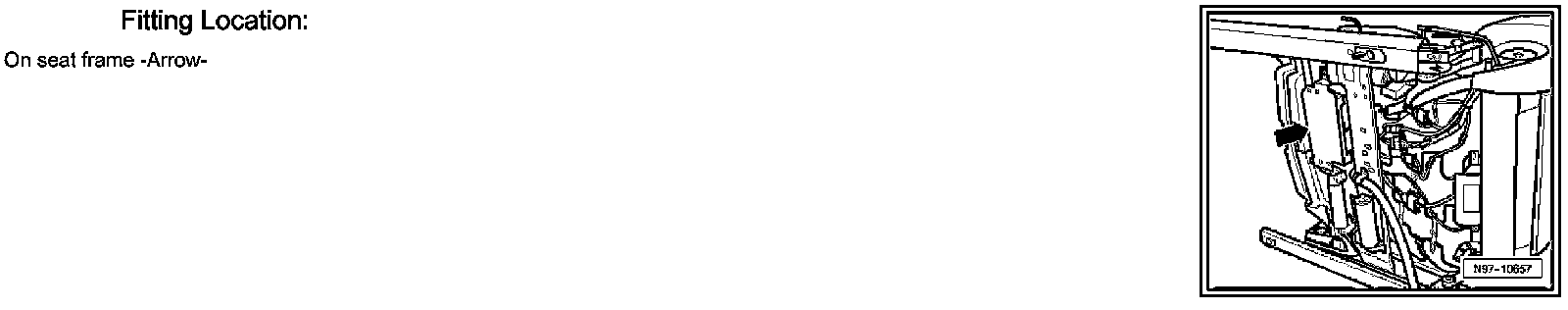

Driver's Entry Assistance Control Module - J572

Driver's Entry Assistance Control Module - J572:
