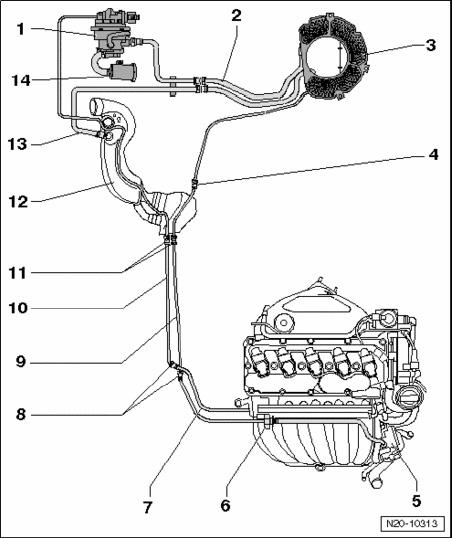

EVAP Canister System, Overview

EVAP Canister System, Overview







1 - Leak detection pump (LDP) V144
- Component location: Under wheel housing liner in right rear wheel housing
- Checking
2 - Connecting line
- From Leak Detection Pump (LDP) V144 to EVAP canister
- Clipped in on bracket
3 - EVAP canister
- Component location: Bottom of spare wheel well
4 - Separating point
- At right rear on fuel tank
5 - Throttle valve control module J338
6 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve 1 N80
7 - Vacuum line
- Connected to intake manifold
8 - Separating point
- At right, front in engine compartment under coolant expansion tank
9 - Vent line
- White
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- Installed location: at right on underbody
- Secured to fuel tank
10 - Vacuum line
- Green
- From engine to Leak Detection Pump (LDP) V144
- Installed location: at right on underbody
- Secured to fuel tank
11 - Separating point
- At right, front on fuel tank in area of fuel filter
12 - Filler tube
13 - Vent line
- From filler connection to EVAP canister
14 - Air filter housing
- For Leak detection pump (LDP) V144
