Vehicle Inclination Sensor, through 05.06

Vehicle Inclination Sensor, through 05.06

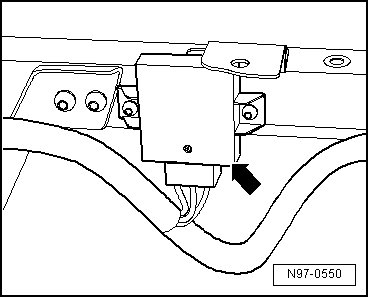

Vehicle Inclination Sensor - arrow - is located under instrument panel at right, under front passenger's airbag.





• To remove the sensor, anti-theft warning system must be deactivated. Refer to => [ Antitheft Alarm System, Activating and Deactivating, through 05.06 ] Antitheft Alarm System, Activating and Deactivating, through 05.06.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove glove compartment.

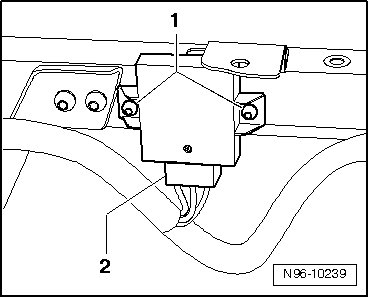

- Remove mounting bolts - 1 - and remove Vehicle Inclination Sensor (G384) from carrier.





- Disengage connector - 2 - and disconnect it from Vehicle Inclination Sensor (G384).

Installing

Install in reverse order of removal.
